PLE7S系列H81平臺 工業一體機/工業平板電腦 電阻觸摸屏

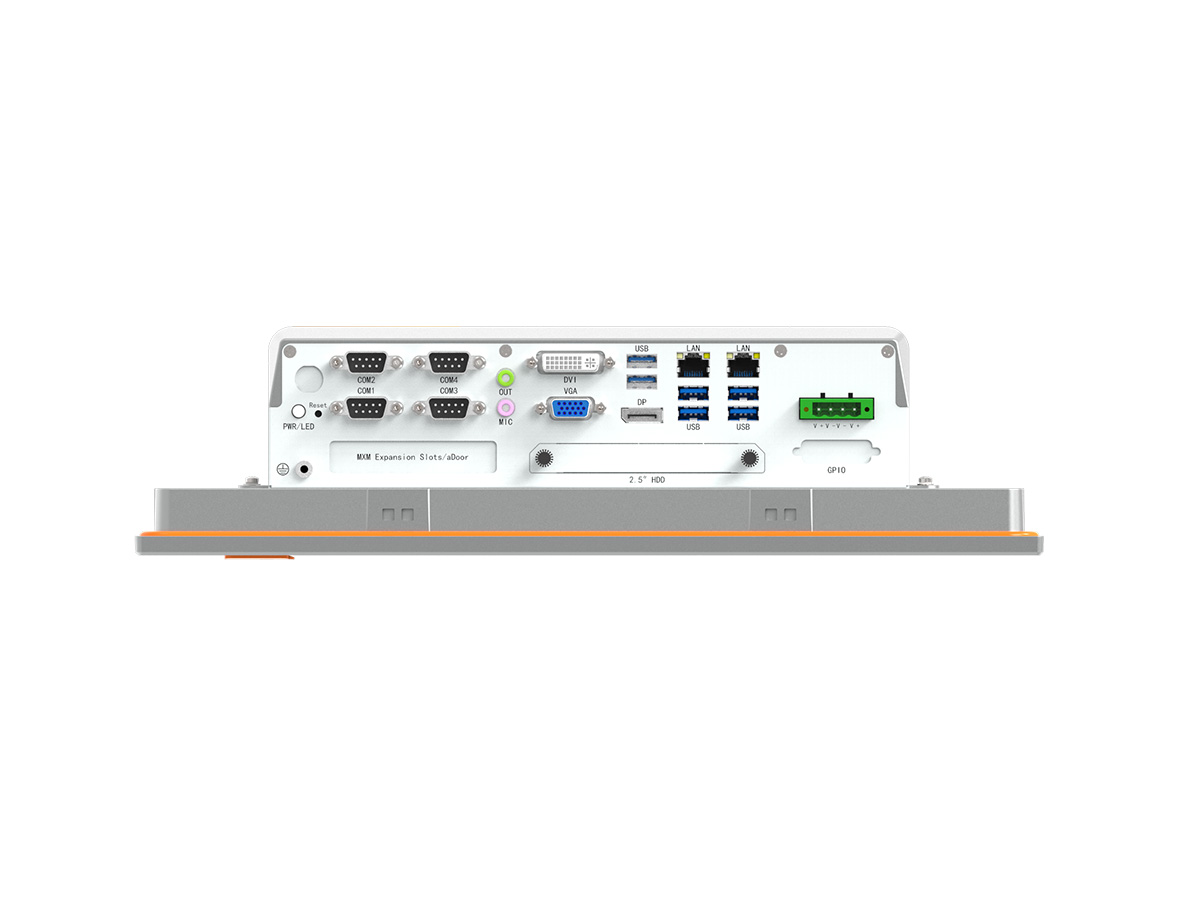

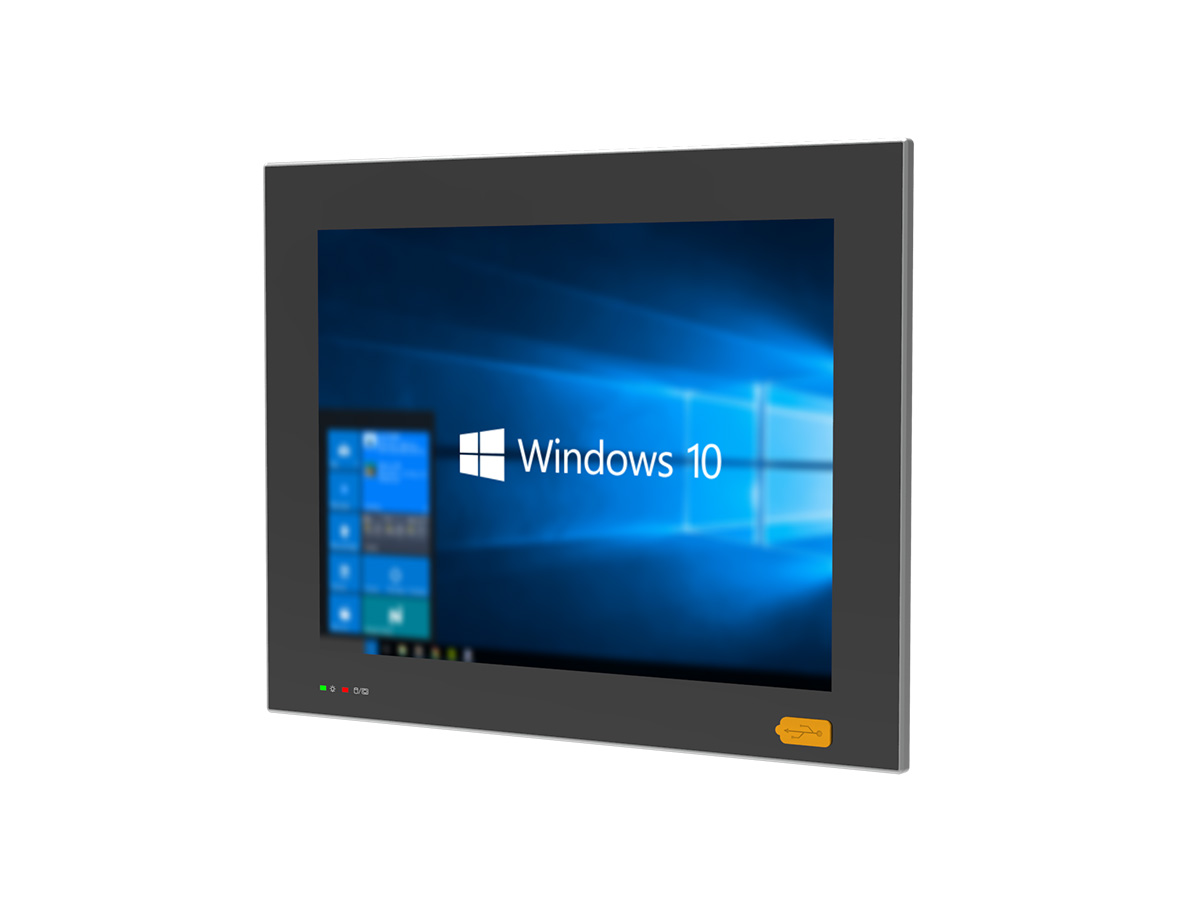

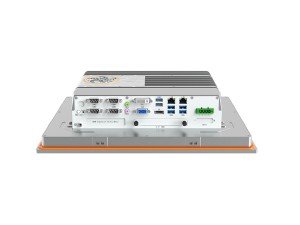

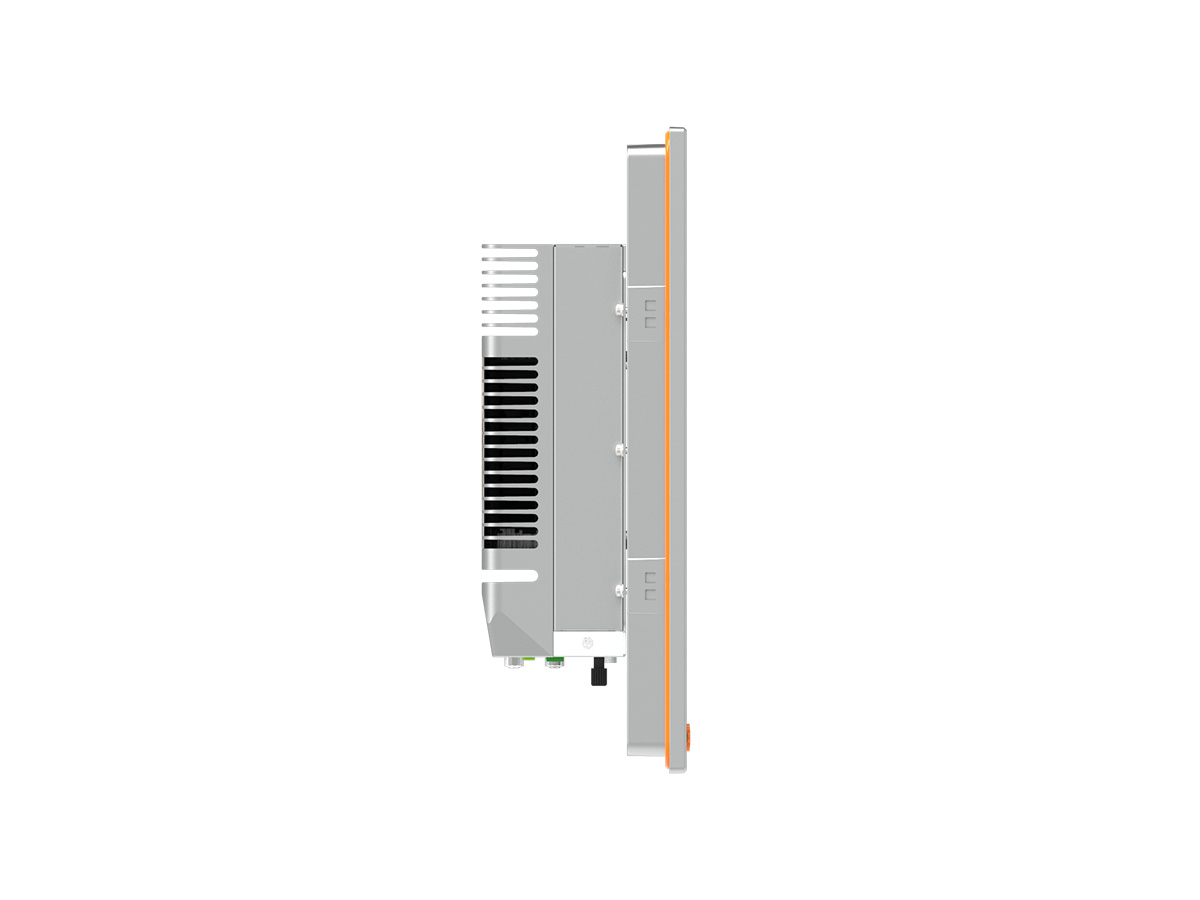

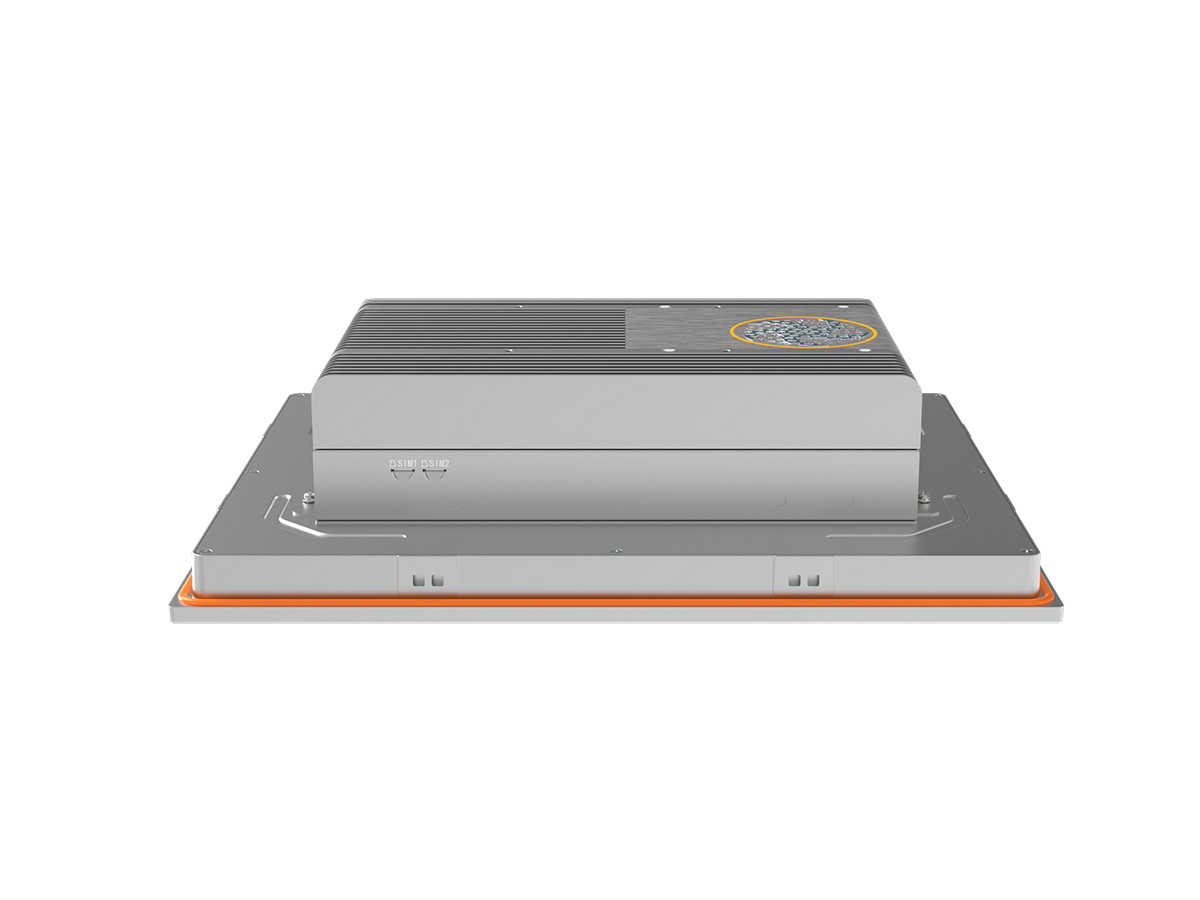

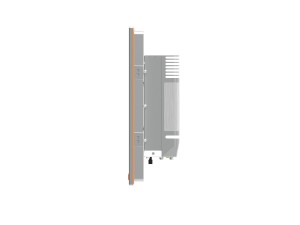

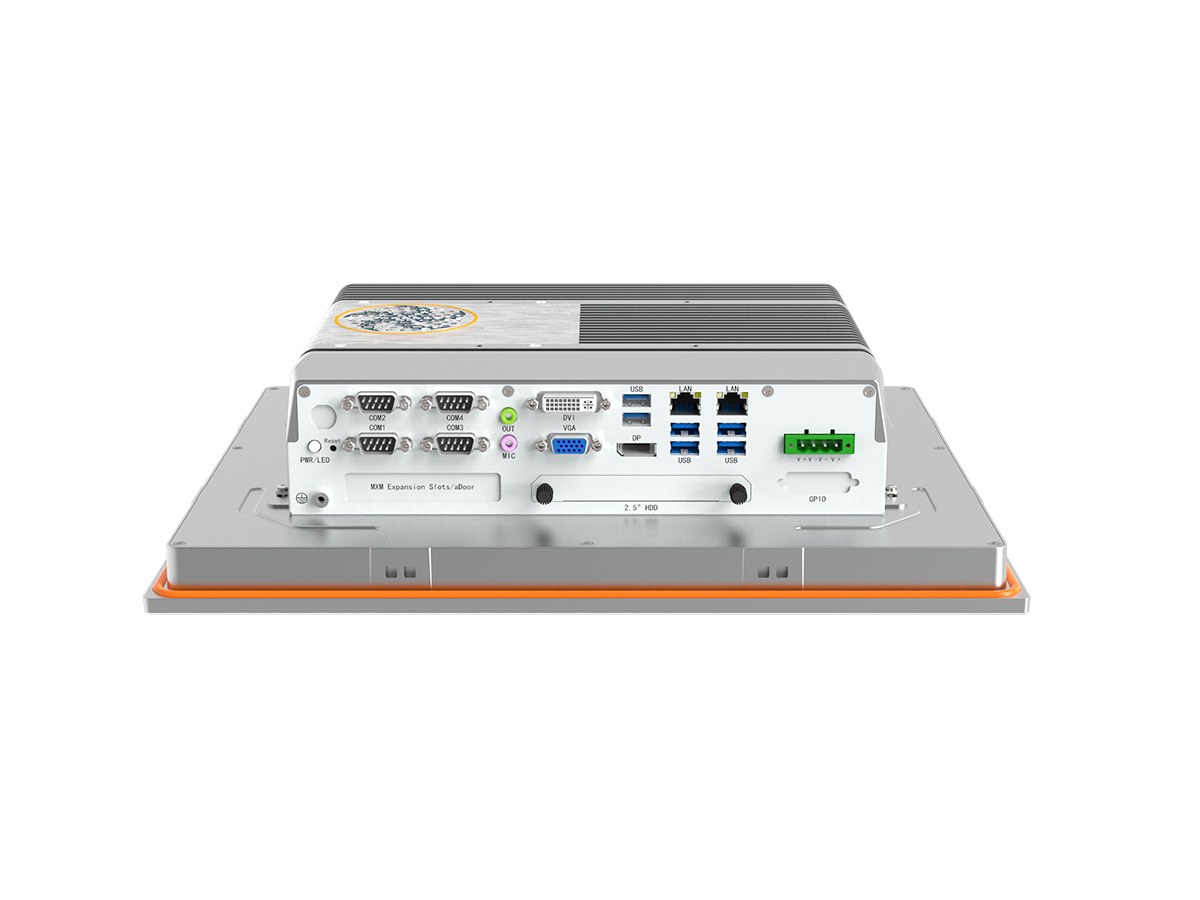

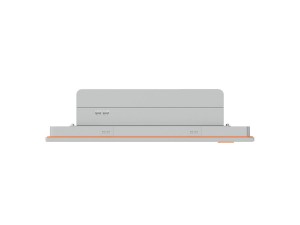

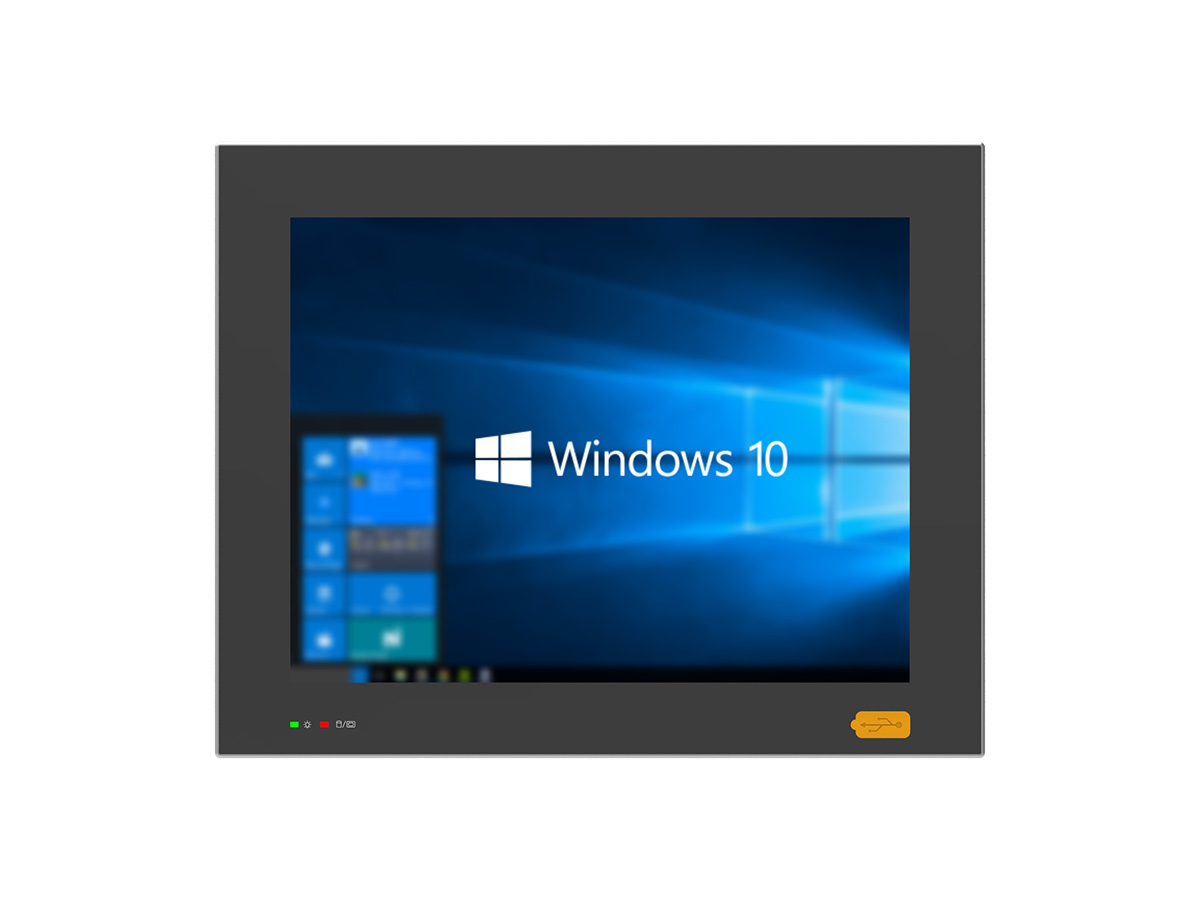

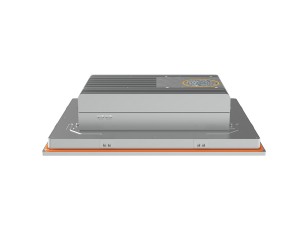

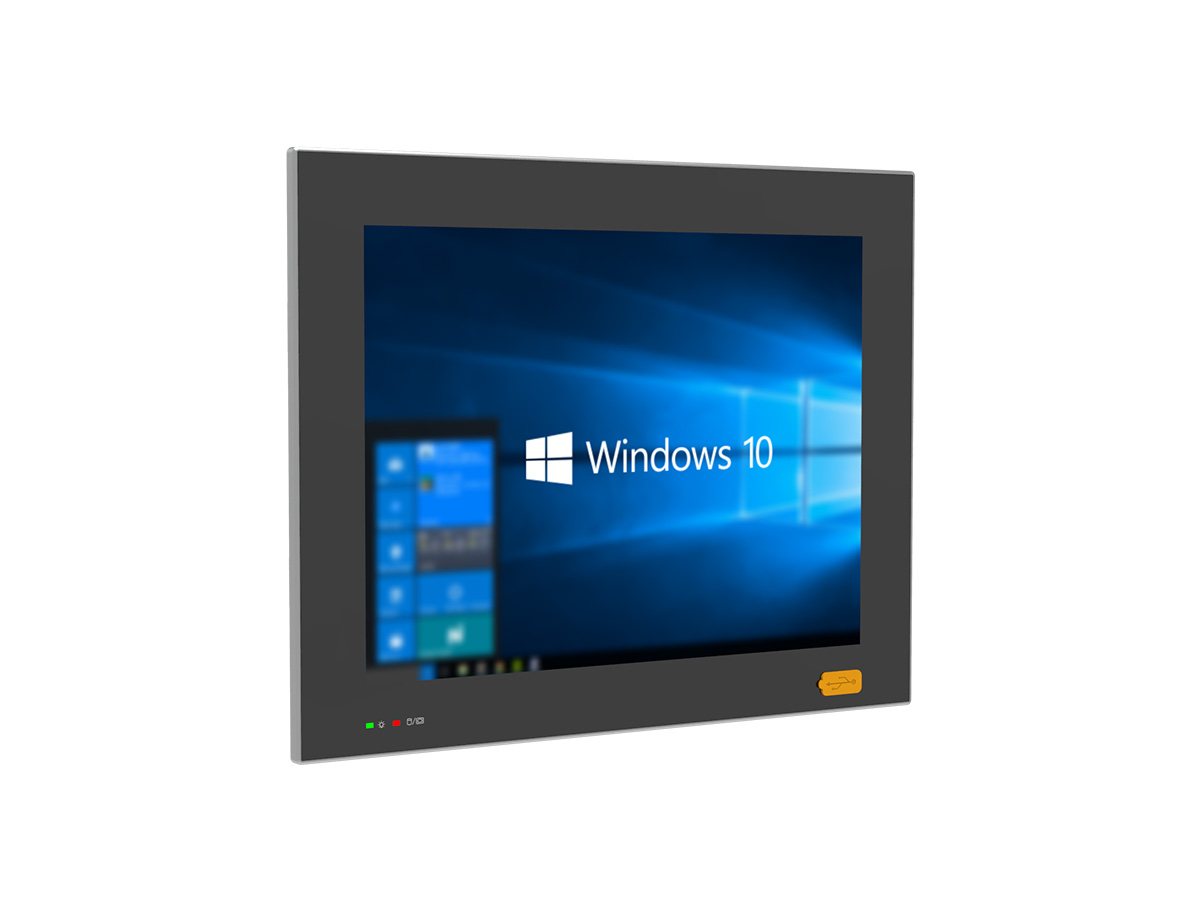

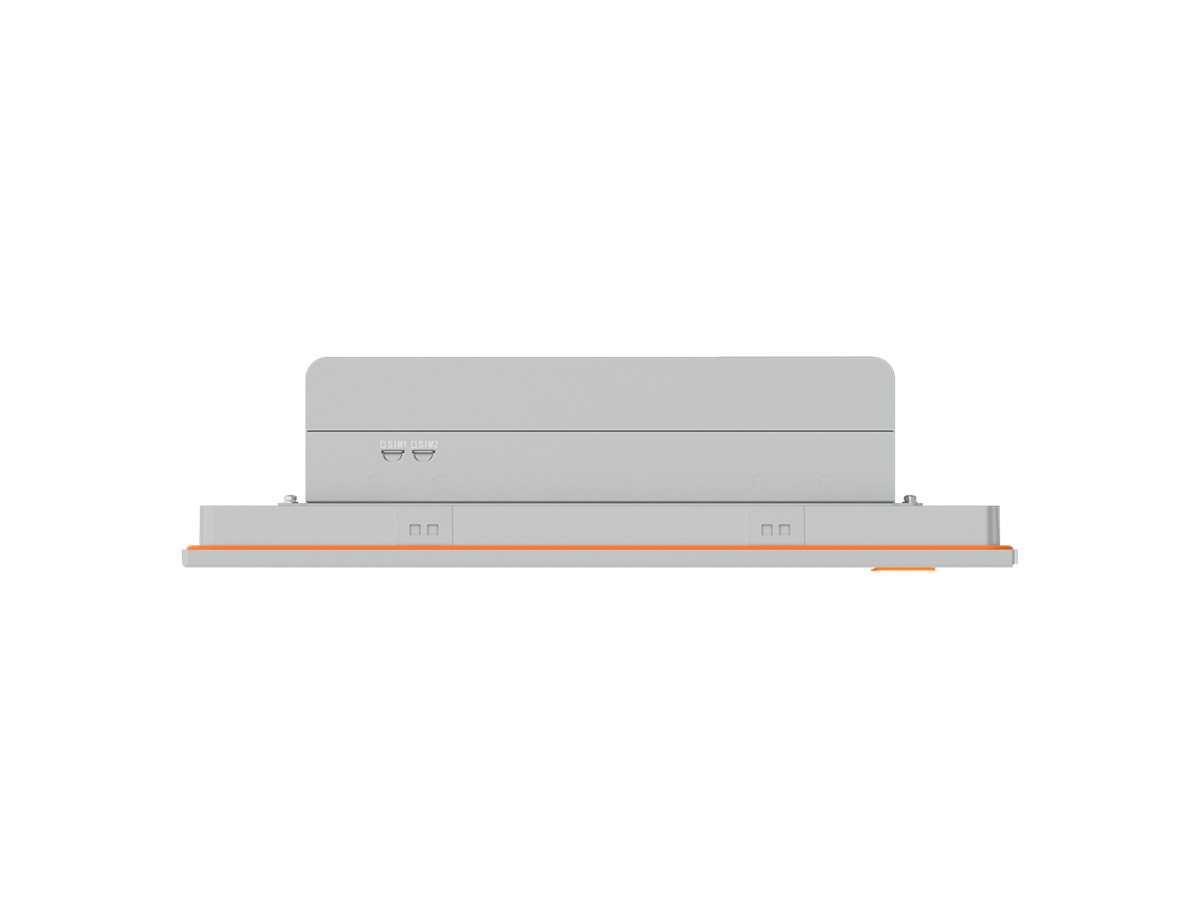

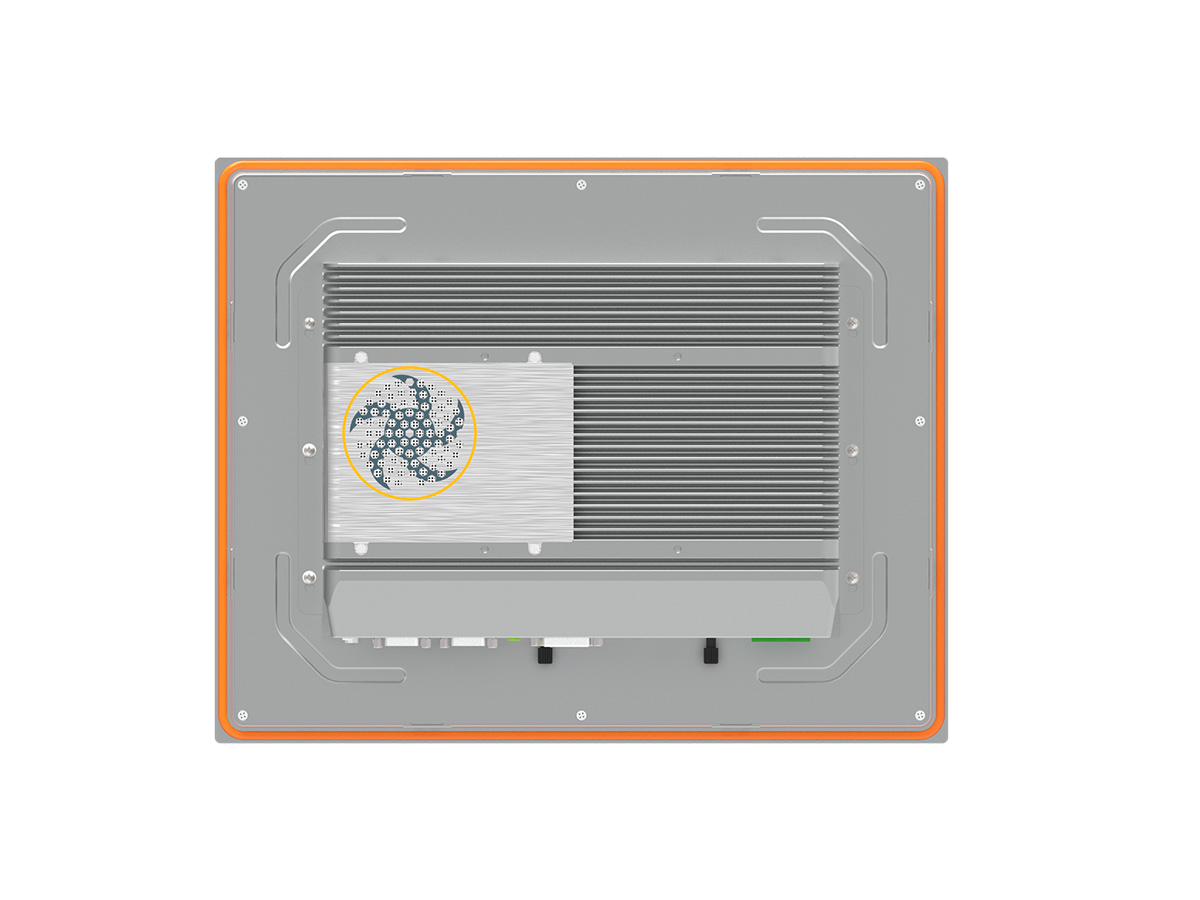

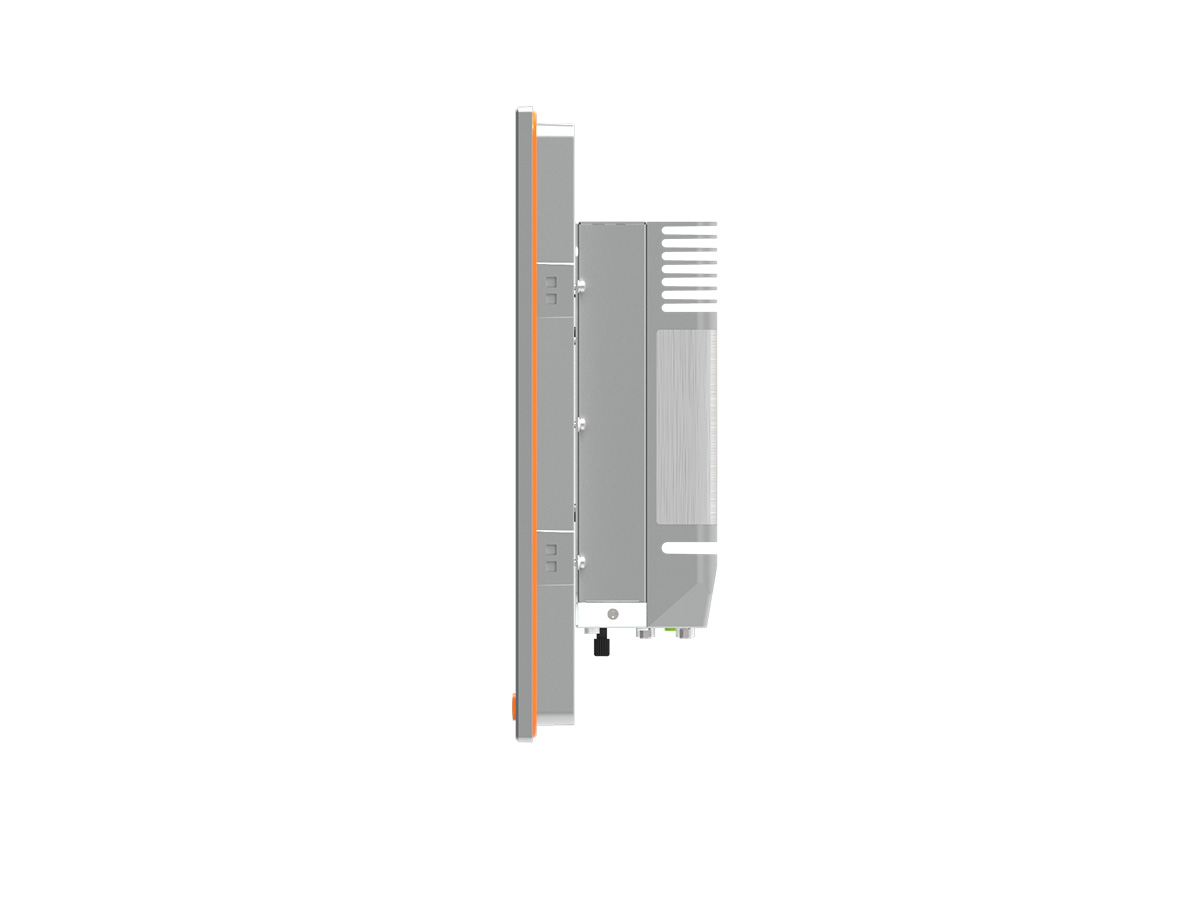

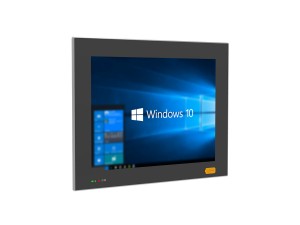

Note: The product image shown above is the PL150RQ-E7S-H81 model

PLE7S系列H81平臺 工業一體機/工業平板電腦 電阻觸摸屏

特點:

  • Full screen resistance touch screen design
  • Modular design 12.1~21.5 “optional, support square screen/wide screen
  • Front panel meets IP65 requirements
  • Integrated USB type-A and signal indicator on the front panel
  • 支持Intel? 4/5th Gen core/pentium/Celeron desktop CPU, TDP 65W
  • With Intel ? H81 chipset
  • Two Intel gigabit network interfaces and four DB9 serial ports
  • M.2 and 2.5-inch dual hard disk storage support
  • 4-way display output VGA, DVI-D, dp++and internal LVDS, maximum support 4K@60Hz resolving power
  • 9~36v DC power supply (optional 12V)
  • Embedded/vesa installation

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品描述

阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E7S系列H81平臺是一款專為工業應用而設計的工業一體機。其核心特點在于采用全屏電阻觸摸屏技術，為用戶提供穩定、精準的觸控體驗，滿足工業環境下的操作需求。該一體機采用模塊化設計，支持12.1~21.5″的屏幕尺寸，適應不同行業標準和用戶需求。前面板滿足IP65要求，具備出色的防塵防水性能，能夠應對各種惡劣的工業環境。它采用Intel? 4/5th Gen Core / Pentium/ Celeron Desktop CPU，搭配Intel? H81芯片組，保證高效性能的同時降低能耗。集成2個Intel千兆網絡接口和4個DB9串口，提供高速穩定的網絡連接和數據傳輸能力。支持M.2和2.5寸雙硬盤位存儲，滿足大量數據存儲需求。4路顯示輸出支持VGA、DVI-D、DP++和內部LVDS，最高支持4K@60Hz分辨率，滿足多樣化的顯示需求。

阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E7S系列H81平臺還采用9~36V直流供電（可選12V），適應各種電源環境。支持嵌入式和VESA安裝方式，方便集成到各種工業環境中，是工業自動化和邊緣計算領域的理想選擇。



產品介紹

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S PL170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch
Controller USB signal
Input finger/touch pen
Light Transmission ≥78%
Hardness ≥3H
Processor System CPU Intel? 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1150
Chipset Intel? H81
BIOS AMI UEFI BIOS (Support Watchdog Timer)
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Graphics Controller Intel? HD Graphics
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm)
1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O Antenna 4 * Antenna hole
SIM 1 * Nano SIM card slot (SIM1)
Internal I/O USB 2 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * Front Panel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 2 * SATA 7P Connector
SATA Power 2 * SATA Power (SATA_PWR1/2, wafer)
FAN 1 * CPU FAN (wafer)
2 * SYS FAN (wafer)
Power Supply Type DC, AT/ATX
Power Input Voltage 9 ~ 36VDC, P≤240W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, embedded
Dimensions
(L * W * H, Unit: mm)		 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Weight Net: 6.6 kg
Total: 8.1 kg		 Net: 8.0 kg
Total: 9.5 kg		 Net: 7.9 kg
Total: 9.6 kg		 Net: 8.8 kg
Total: 10.3 kg		 Net: 8.7 kg
Total: 10.2 kg		 Net: 10.0 kg
Total: 11.5 kg		 Net: 9.6 kg
Total: 11.1 kg
Environment Heat Dissipation System PWM Fan Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)

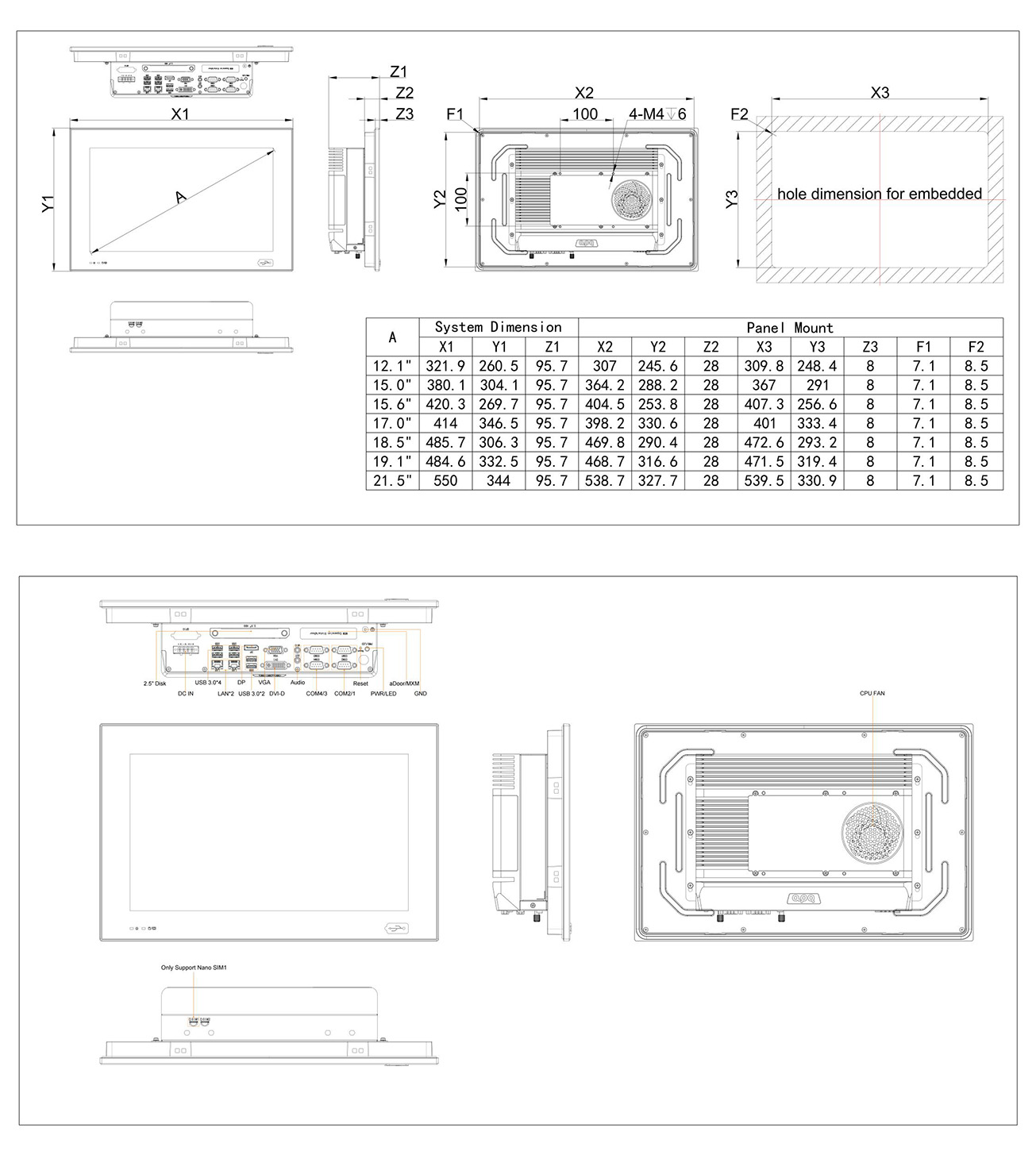

PLxxxRQ-E7S-20240103_00
