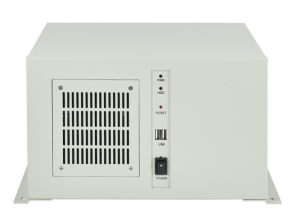

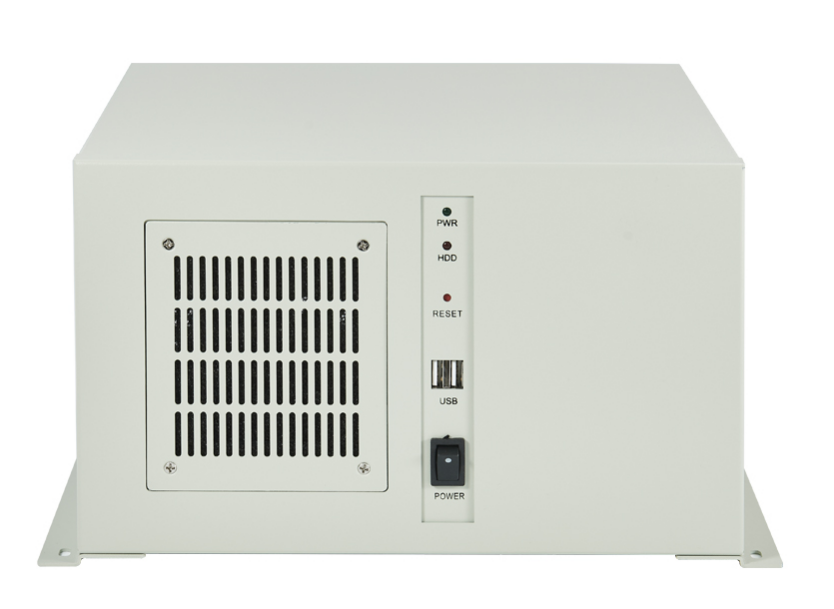

IPC340-H610 工控機 壁掛式工控機

IPC340-H610 工控機 壁掛式工控機

特點:

  • 壁掛式工控機
  • 支持Intel??12~14th Generation Core/Pentium/Celeron Desktop CPU
  • 安裝標準Micro-ATX主板，支持標準ATX電源
  • 最多支持4槽位全高卡擴展，滿足多行業應用需求
  • 人性化設計，機箱前置系統風扇
  • 最多可選1個3.5英寸和1個2.5英寸硬盤
  • 前?板USB、開關機設計，電源及存儲狀態顯?，更易于系統維護

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model

IPC340-H610

Processor System

 CPU Support Intel??12~14th Generation Core / Pentium/ Celeron Desktop CPU
? TDP 125W
? Socket LGA1700
? Chipset H610
? BIOS AMI 256 Mbit SPI

Memory

 Socket 2?* Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz
? Capacity 64GB, Single Max. 32GB

Graphics

 Controller Intel??UHD Graphics

Ethernet

 Controller 1 * Intel i226-V 2.5GBE LAN Chip (10/100/1000/2500 Mbps, RJ45)

1 * Intel i219-V GBE LAN Chip (10/100/1000 Mbps, RJ45)

Storage

 SATA 4 * SATA3.0 7P Connector
? M.2 1 * M.2 Key-M Slot (PCIe3.0 x2, NVMe SSD, 2242/2260/2280)

Expansion Slots

 PCIe 1 * PCIe x16 Slot (Gen4, x16 signal)
1?* PCIe x4 Slot (Gen3, x4 signal)
? PCI 2 * PCI Slot

Front I/O

 Ethernet 2 * RJ45
? USB 2?* USB?10Gbps?(Type-A)

2?* USB?5Gbps?(Type-A)
2 * USB 2.0 (Type-A)
? Display 1 * VGA: max resolution up to 1920*1080@60Hz
1 * HDMI: max resolution up to 4096*2304@30Hz

1 * DP: max resolution up to 4096*2304@30Hz
? Audio 3 * 3.5mm Jack (Line-In + Line-Out + MIC)
? Serial 2 * RS232/422/485 (COM1/2,?Select by jumper setting, DB9/M)
? PS/2 1 * PS/2 (Keyboard & Mouse)

Rear I/O

 USB 2 * USB2.0 (Type-A)
? Button 1 * Power Button

1 * Reset Button
? LED 1 * Power status LED

1 * Hard drive status LED

Internal I/O

 USB 2 * USB2.0 (Type-A, Vertical)
? Serial 4 * RS232 (COM3/4/5/6, Header)
? LPT 1?*?LPT?(Header)
? GPIO 8bits GPIO?(4in?+ 4out, Header)
? SATA 4 * SATA3.0 7P Connector
? FAN 1 * CPU FAN (Header)
2 * SYS FAN (Header)

Power Supply

 Type ATX
? Power Input Voltage AC power supply, voltage and frequency shall be based on the ATX power supply provided
? RTC Battery CR2032 Coin Cell

OS Support

 Windows Windows 10/11

?

 Linux Linux

Watchdog

 Output System Reset
? Interval Programmable 1 ~ 255 sec

Mechanical

 Enclosure Material SGCC
? Dimensions 290mm(L) * 290mm(W) * 174mm(H)
? Mounting Wall mounted, Desktop

Environment

 Heat Dissipation System PWM fan cooling
? Operating Temperature 0 ~ 50℃
? Storage Temperature -20 ~ 70℃
? Relative Humidity 10 to 90% RH (non-condensing)
