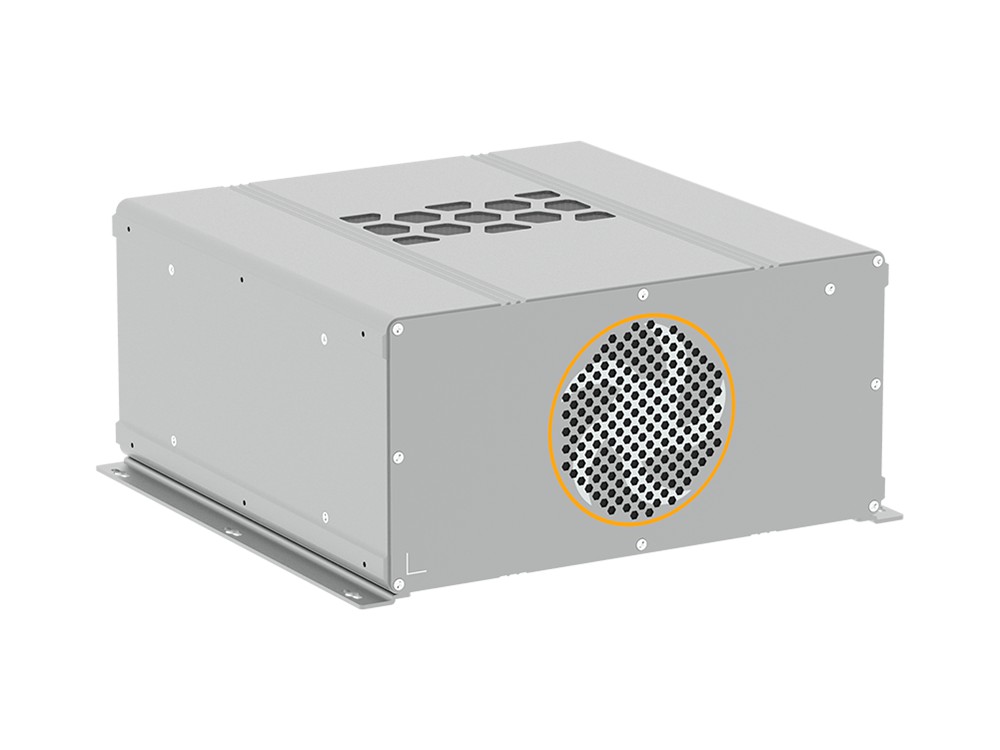

IPC330D-H110L5 工控機 壁掛式工控機

IPC330D-H110L5 工控機 壁掛式工控機

特點:

  • 鋁合金模具成型
  • 支持Intel??6/7/8/9th Generation Core/Pentium/Celeron Desktop CPU
  • 安裝標準ITX主板，支持標準1U電源
  • 選配轉接卡，可支持2*PCI或1*PCIe X16擴展
  • 默認1個2.5英寸7mm抗震抗沖擊硬盤位設計
  • 前面板開關機設計，電源及存儲狀態顯示，更易于系統維護
  • 支持多方向壁掛式、桌面式安裝

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

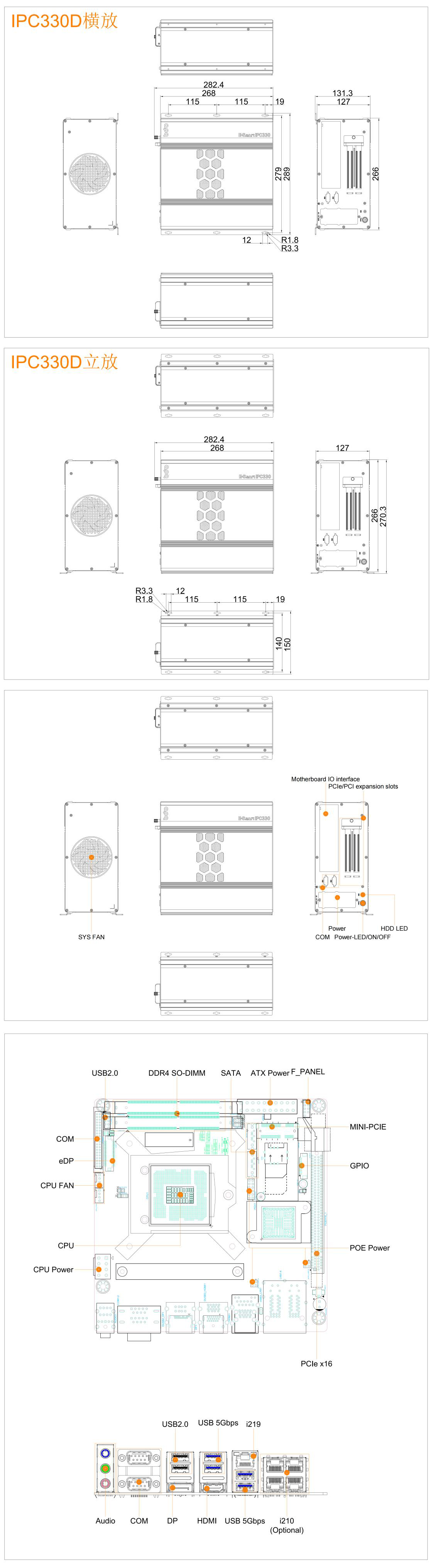

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model

IPC330D-H110L5

Processor System

 CPU Support Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1151
Chipset H110
BIOS AMI UEFI BIOS (Support Watchdog Timer)

Memory

 Socket 2 * DDR4-2133/2400MHz, non-ECC U-DIMM Slot
Capacity Single Max. 16GB

Graphics

 Controller Intel? HD Graphics

Ethernet

 Controller 1 * I219 GBE LAN Chip (10/100/1000 Mbps, RJ45)4 * I210?GBE LAN Chip (10/100/1000 Mbps, RJ45) + 4 * POE Connector

1 * POE Power Connector

Storage

 SATA 2 * SATA3.0 7P Connector
mSATA 1 * mSATA ( Share slot with Mini PCIe, default)

Expansion Slots

 PCIe j:?1 * PCIe?x16k: 2 * PCI

PS:?j、k?One out of two, Expansion card length≤?235mm
Mini PCIe 1 * Mini PCI-E Slot (mSATA/WIFI+4G/3G, default mSATA+4G/3G ), with 1 * Full-Size SIM Card Slot

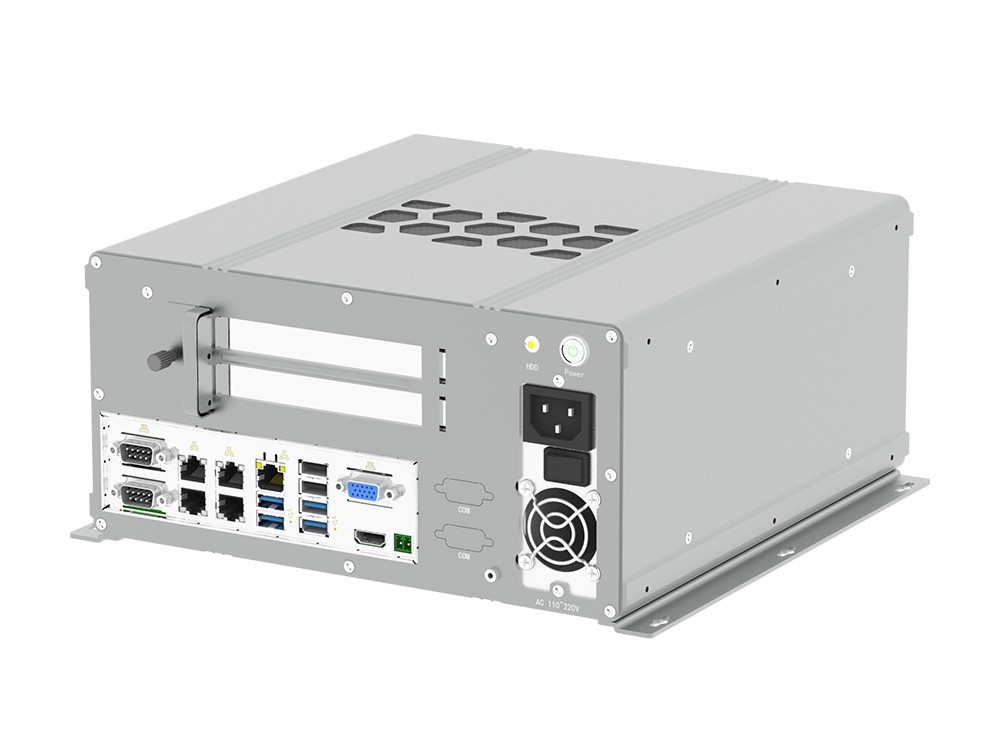

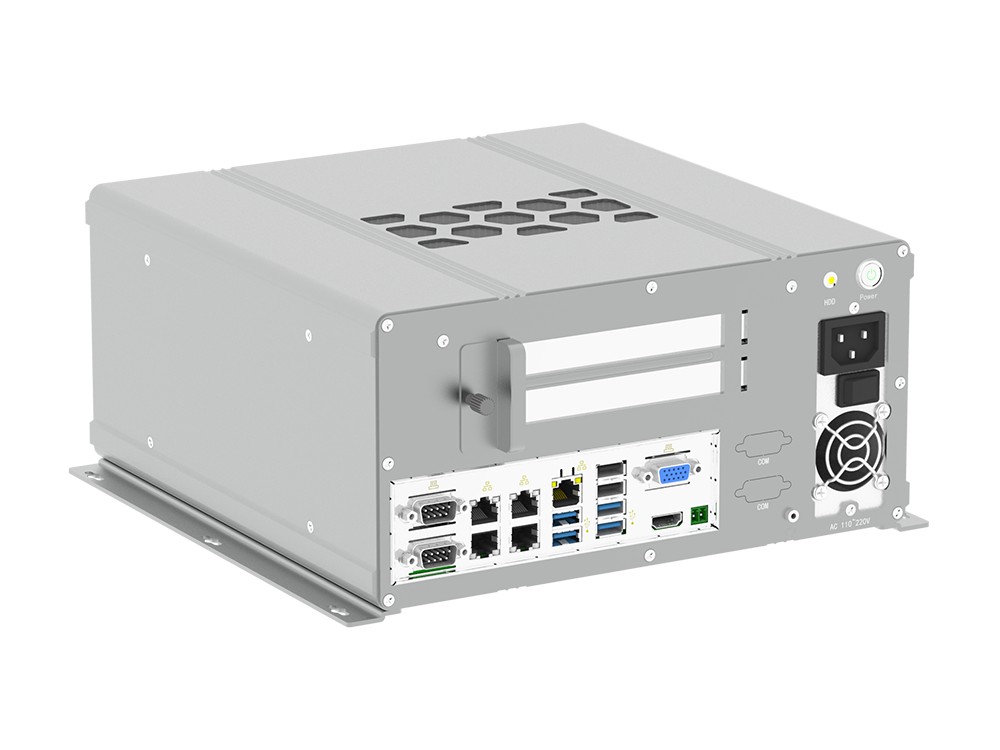

Front I/O

 Ethernet 5 * RJ45
USB 4?* USB3.0
2?* USB2.0
Display 1 * VGA(DB15/F): max resolution up to 1920*1200@60Hz1 * HDMI 1.4b(TYPE-A): max resolution up to 4096*2160@24Hz
Serial 2 * RS232/422/485 (COM1/2, DB9/M,Jump control)
Button 1 * Power Button
PWR_SW1 Remote Power Switch 2P 3.81mm Terminal Block
LED 1 * Power status LED
1 * Hard drive status LED

Internal I/O

 USB 2 * USB2.0 (Header)
COM 2 * RS232 (COM3/4, Header)
GPIO 1 * 8 bits DIO (4xDI and 4xDO, wafer)
SATA 2 * SATA3.0 7P Connector
FAN 1 * CPU FAN (Header)
1 * SYS FAN (Header)
Front Panel 1 * Front Panel (Header)

Power Supply

 Type 1U FLEX
Power Input Voltage AC power supply, voltage and frequency shall be based on the 1U FLEX power supply provided
RTC Battery CR2032 Coin Cell

OS Support

 Windows Windows7/8.1/10（8th generation and above CPUs only support WIN10）
Linux Linux

Watchdog

 Output System Reset
Interval Programmable 1 ~ 255 sec

Mechanical

 Enclosure Material SGCC+AI6061
Dimensions 266mm * 127mm * 268mm
Mounting Wall mounted, Desktop

Environment

 Heat Dissipation System PWM fan cooling
Operating Temperature 0 ~ 50℃
Storage Temperature -20 ~ 75℃
Relative Humidity 10 to 95% RH (non-condensing)
