產品描述

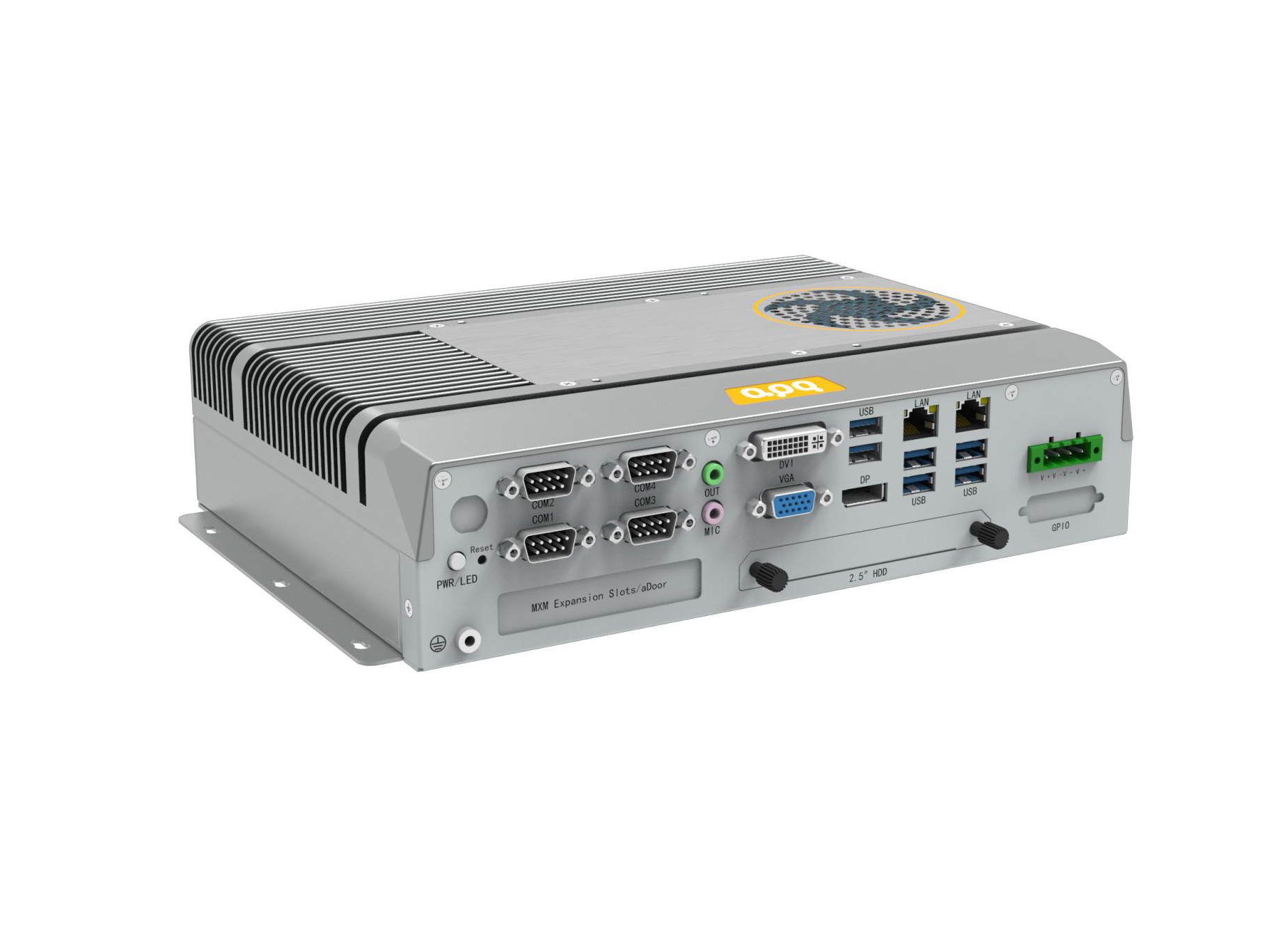

阿普奇嵌入式工控機E7S系列H81平臺，專為工業自動化和邊緣計算打造。采用支持Intel? 4/5th Gen Core / Pentium/ Celeron Desktop CPU，具有優秀的性能和能效，滿足各種工業環境下的穩定運行。H81芯片組提供穩定的硬件平臺，支持多種擴展功能。2個千兆網絡接口確保高速穩定的網絡連接，滿足大數據傳輸需求。4個串口（COM1/2支持RS232/RS422/RS485）方便與外部設備通信。M.2和2.5寸雙硬盤位提供充足的存儲空間，滿足數據存儲和處理需求。4路顯示輸出支持高清晰度顯示，最高支持4K@60Hz分辨率。MXM和aDoor模塊擴展功能可根據具體應用需求進行定制配置。9~36V直流供電范圍適應各種電源環境，確保穩定運行。PWM智能風扇主動散熱設計確保系統散熱效果優良，提升運行可靠性。
總之，阿普奇E7S系列H81平臺嵌入式工控機憑借出色的性能和豐富的接口，為工業自動化和邊緣計算提供了強大支持，滿足各種復雜應用場景的需求。
|
Model |
E7S |
E7DS |
|
|
CPU |
CPU | Intel??4/5th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 65W | ||
| Socket | LGA1150 | ||
|
Chipset |
Chipset | Intel??H81 | |
|
BIOS |
BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz | |
| Max Capacity | 16GB,?Single Max. 8GB | ||
|
Graphics |
Controller | Intel??HD Graphics | |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) | |
|
Storage |
SATA | 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
|
Expansin Slots |
PCIe/PCI | N/A | ①: 1 * PCIe x16 (x16)②: 2 * PCI
PS: ①、②One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W |
| MXM/aDoor | 1 * APQ MXM /aDoor Bus (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1?* aDoor Expansion Slot | ||
| Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card) | ||
|

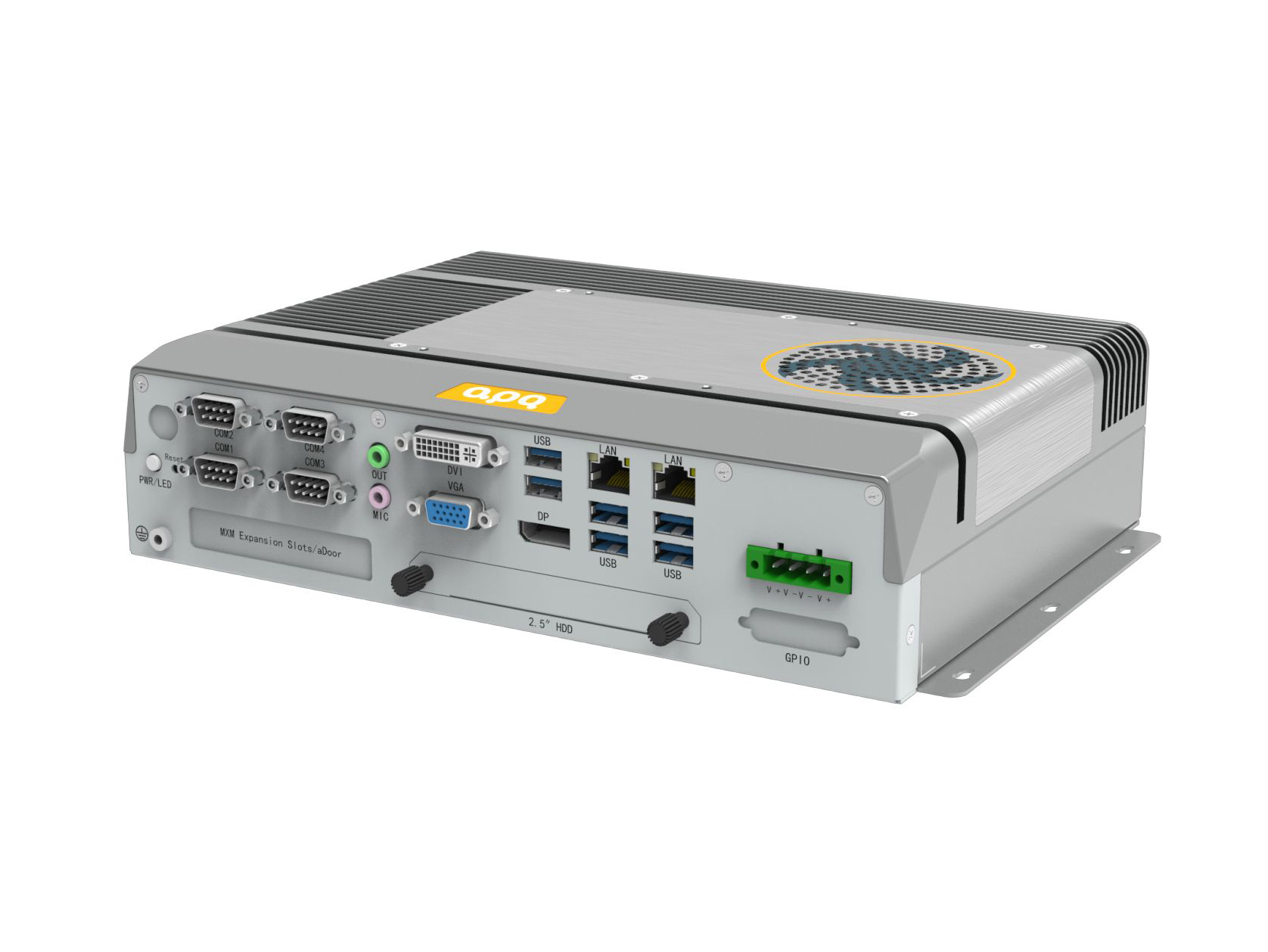

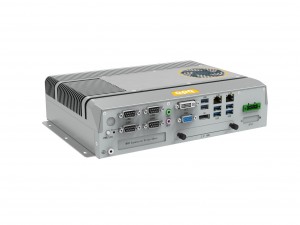

Front I/O |
Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.0 (Type-A, 5Gbps)4 * USB2.0 (Type-A) | ||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M) | ||
| Button | 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) | ||
|

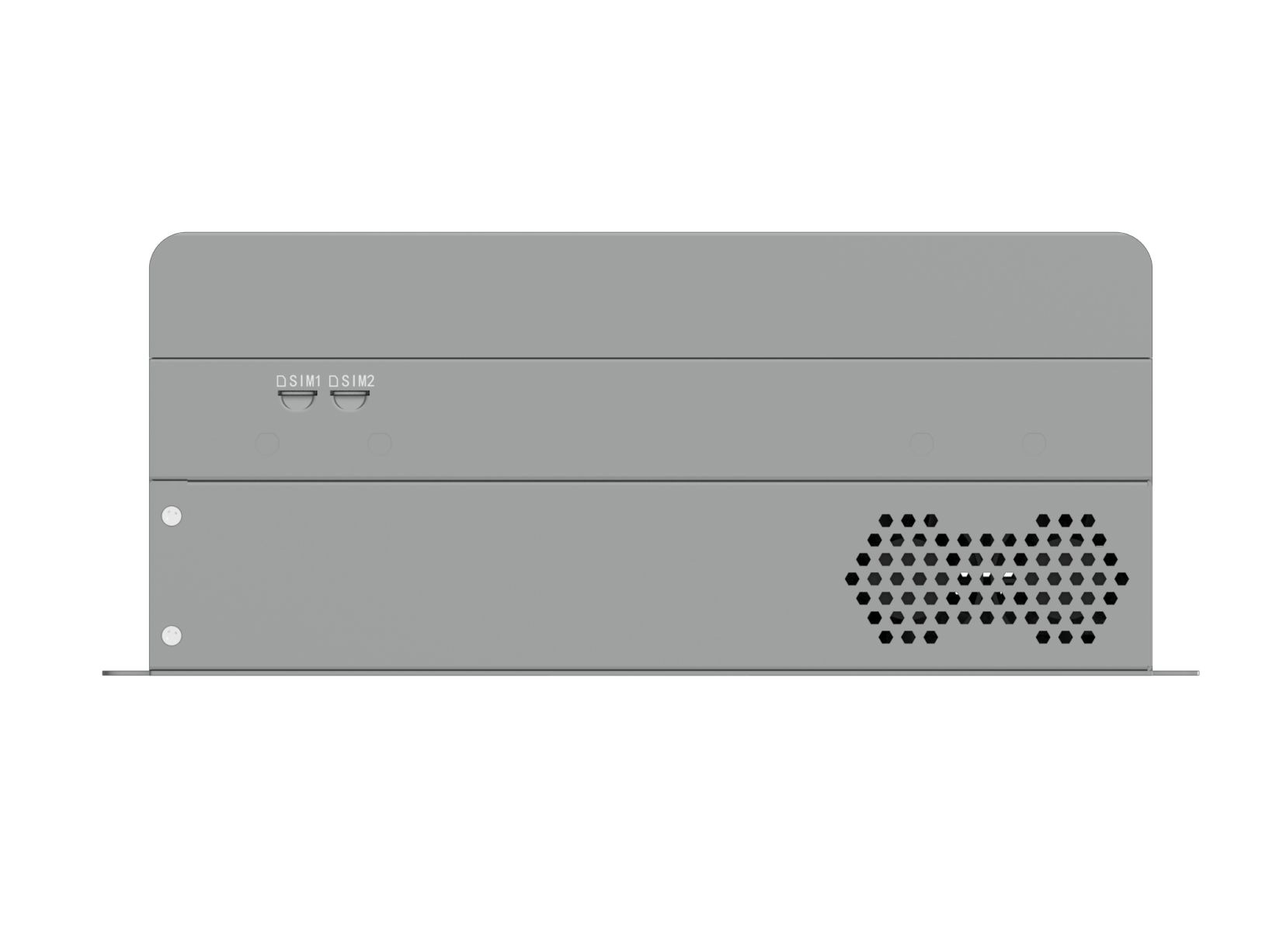

Rear I/O |
Antenna | 4 * Antenna hole | |
| SIM | 1 * Nano SIM card slot?(SIM1) | ||
|
Internal I/O |
USB | 2 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| TFront Panel | 1 * TF _Panel (3 * USB 2.0 + FPANEL, wafer) | ||
| Front Panel | 1 * Front Panel (wafer) | ||
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | ||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 2 * SATA 7P Connector | ||
| SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | ||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (wafer) |
||
|
Power Supply |
Type | DC, AT/ATX | |
| Power Input Voltage | 9 ~ 36VDC, P≤240W | ||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
|
OS Support |
Windows | Windows 7/10/11 | |
| Linux | Linux | ||
|
Watchdog |
Output | System Reset | |
| Interval | Programmable via Software from 1 to 255 sec | ||
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | |
| Dimensions | 268mm(L) * 194.2mm(W) * 67.7mm(H) | 268mm(L) * 194.2mm(W) * 118.5mm(H) | |
| Weight | Net: 4.5 kgTotal: 6 kg (Include packaging) | Net: 4.7kgTotal: 6.2 kg (Include packaging) | |

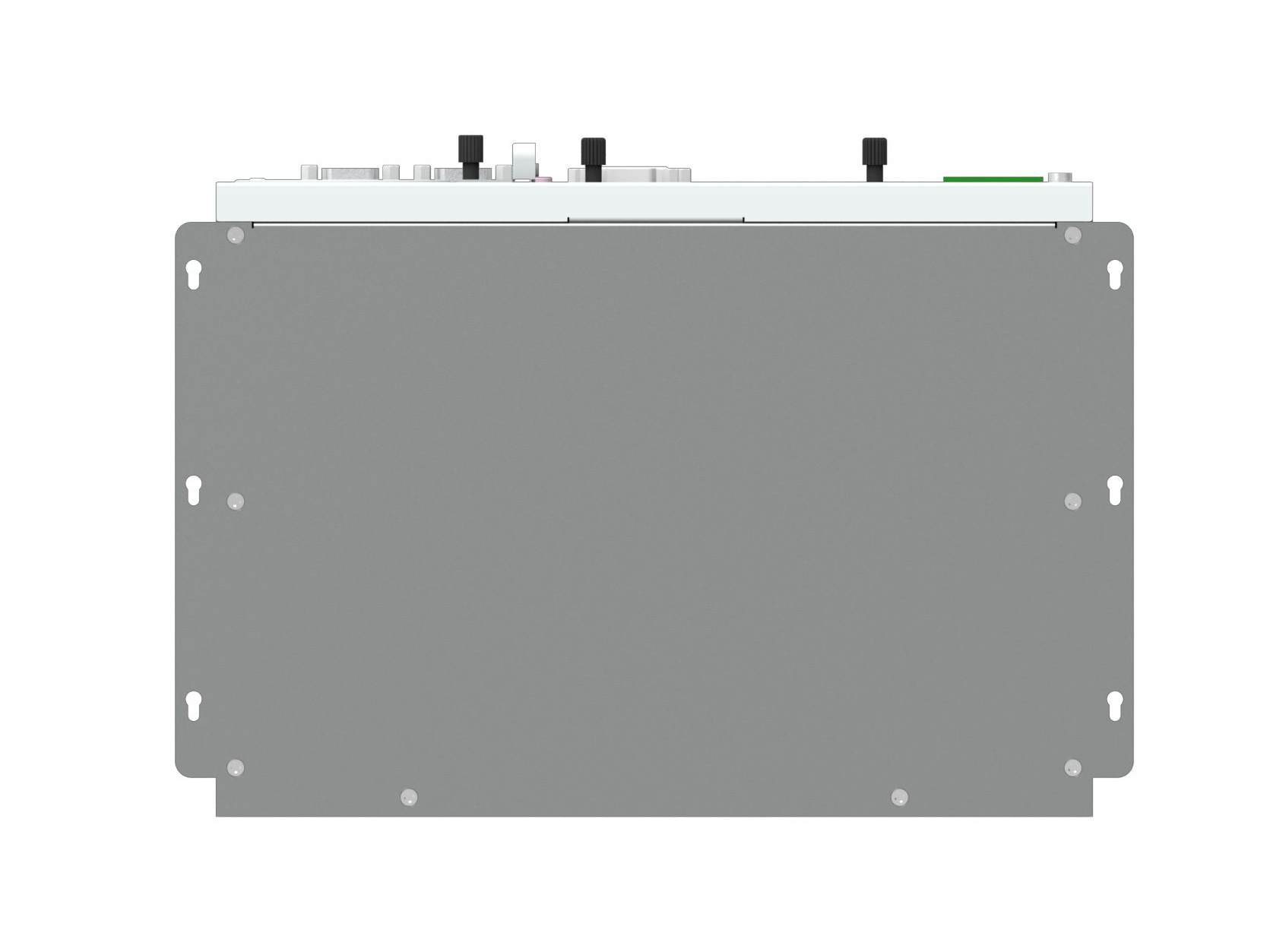

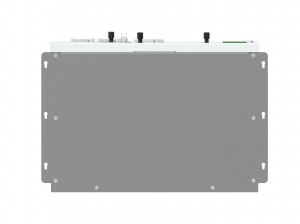

| Mounting | VESA, Wall mounted, Desktop | ||
|
Environment |

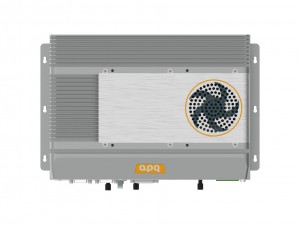

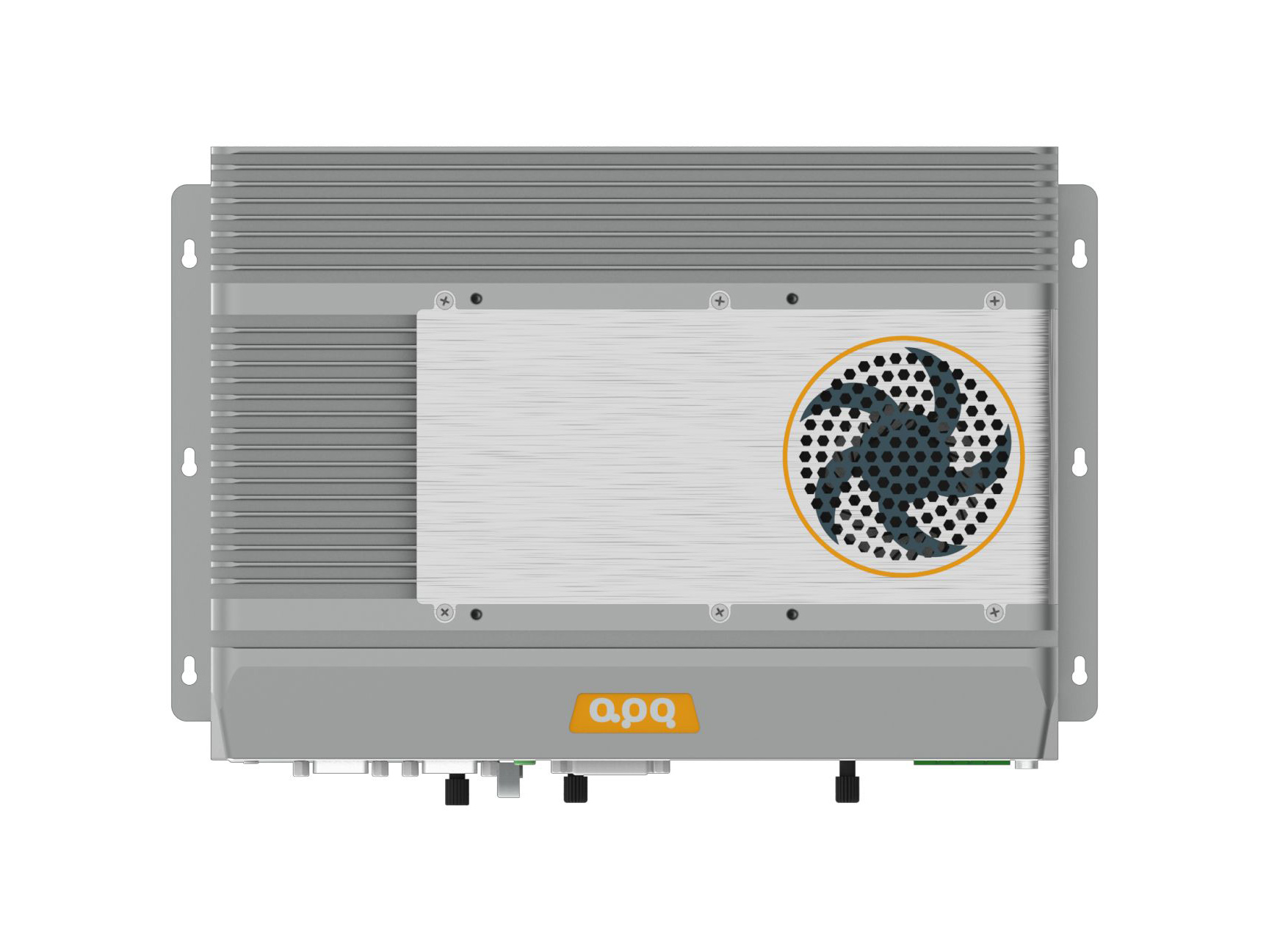

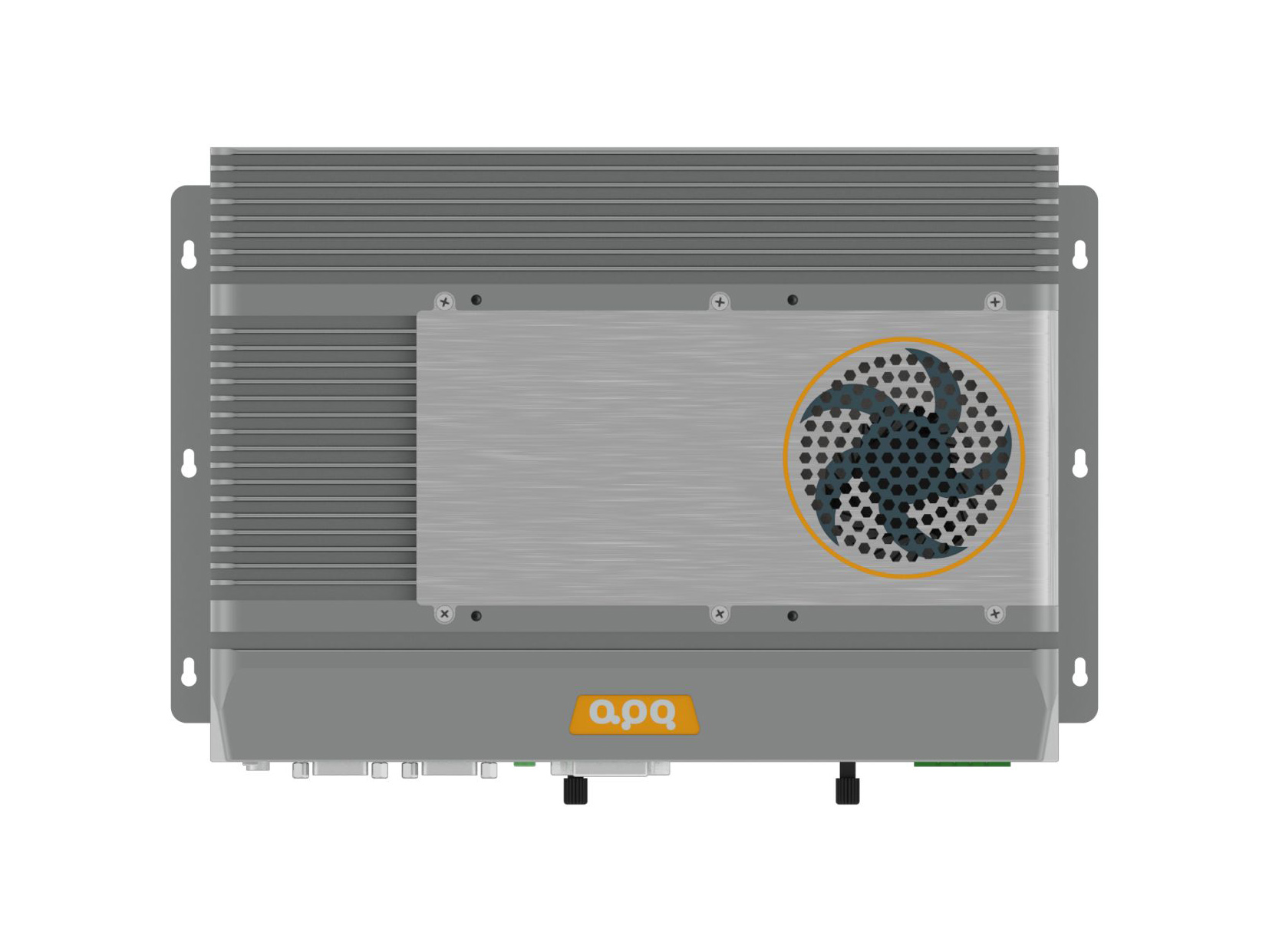

Heat Dissipation System | PWM Air Cooling | |
| Operating Temperature | -20~60℃?(Industrial SSD) | ||
| Storage Temperature | -40~80℃?(Industrial SSD) | ||
| Relative Humidity | 10 to 90% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | ||
| Certification | CCC, CE/FCC, RoHS | ||
-
