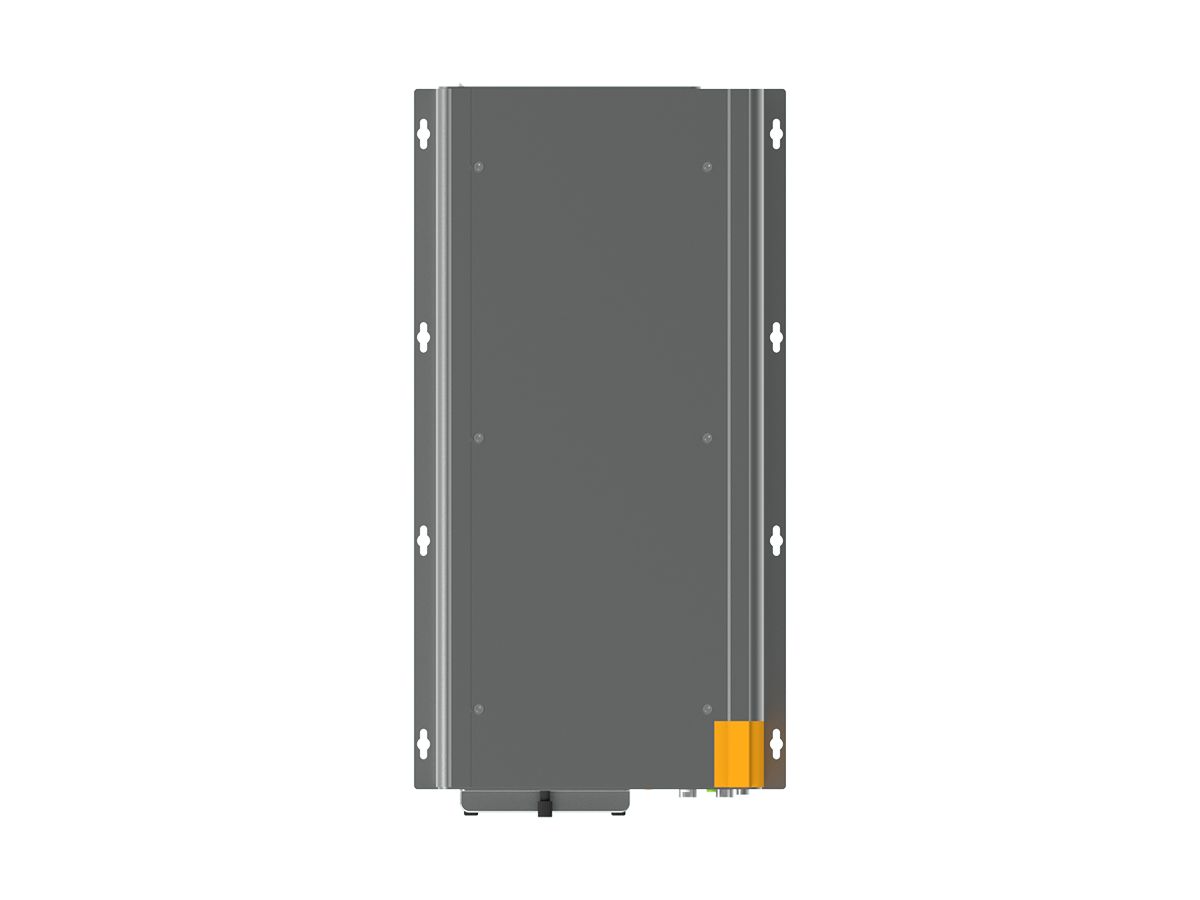

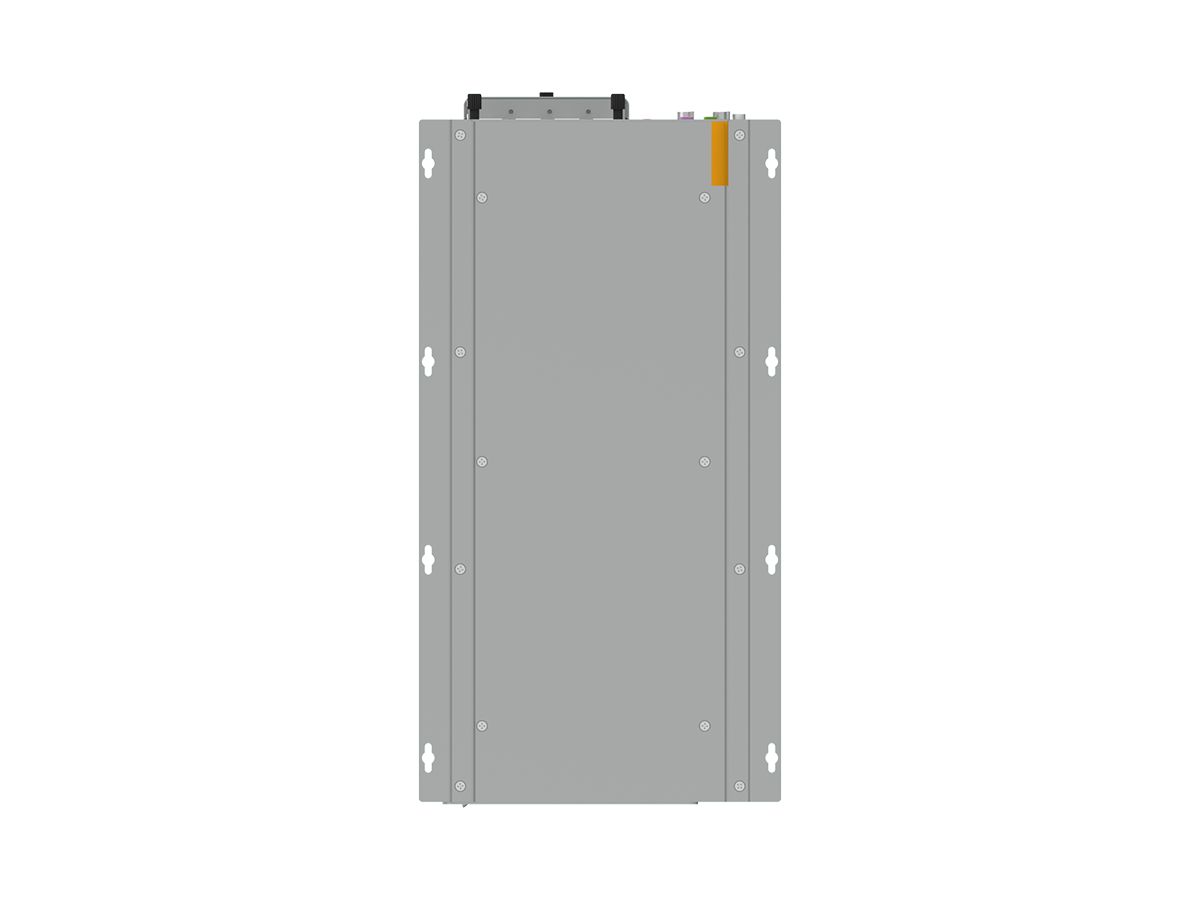

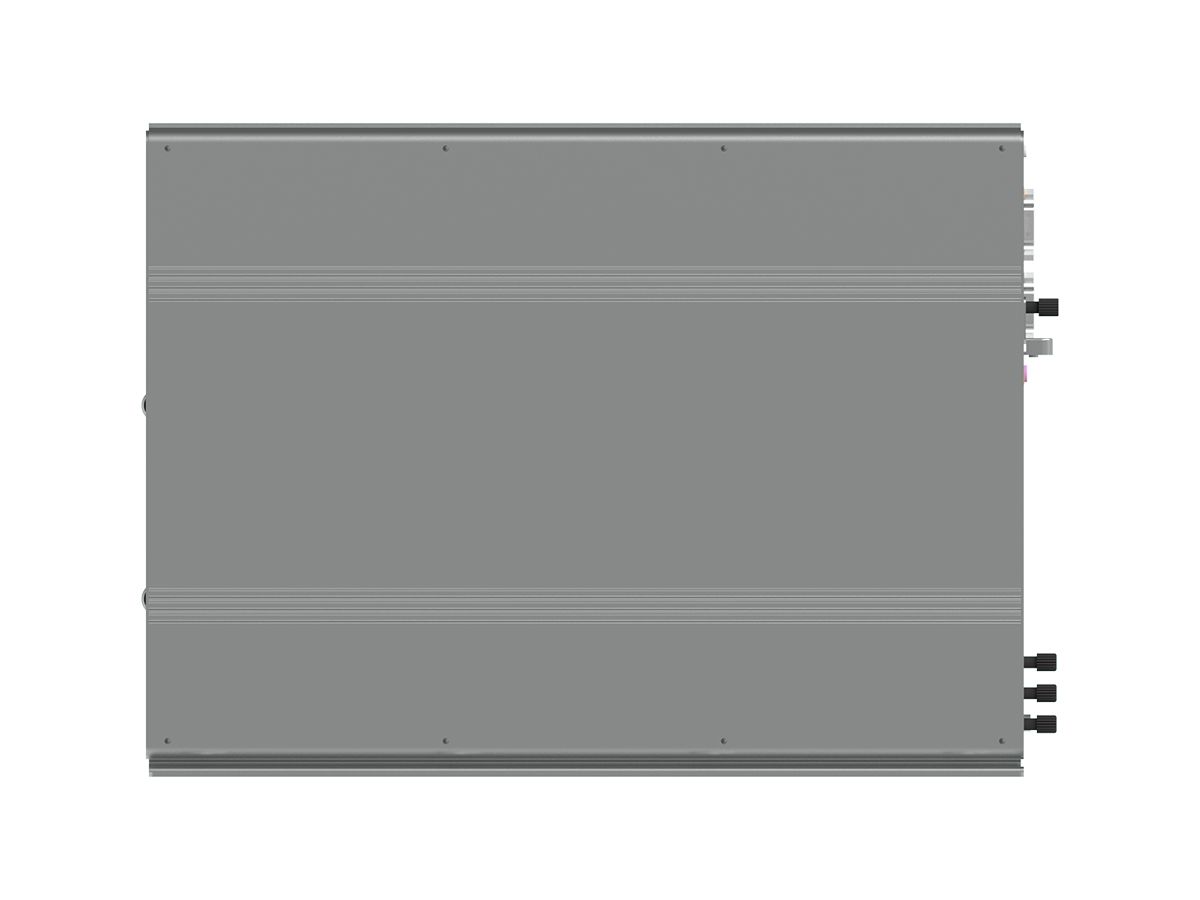

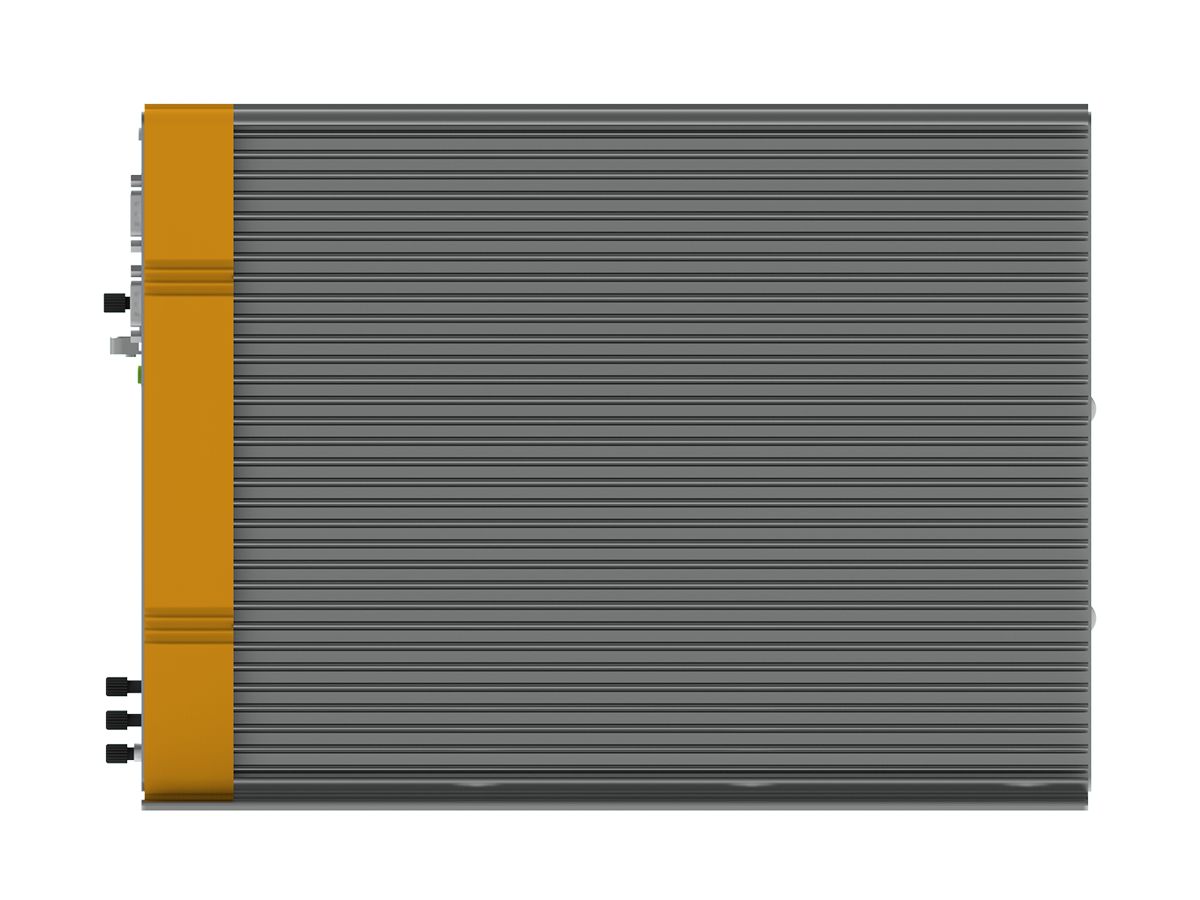

產品描述

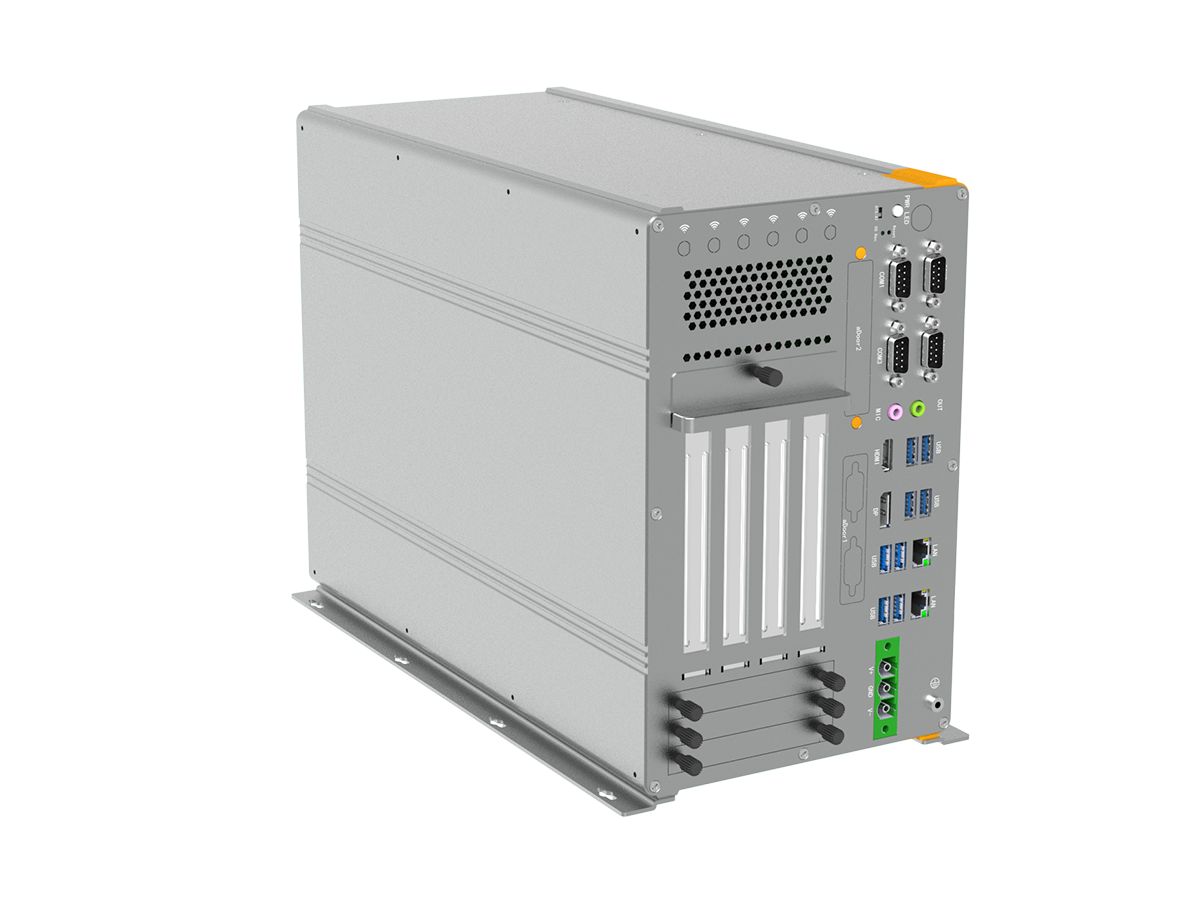

阿普奇車路協同控制器E7Pro系列Q670平臺是一款更適用于車路協同行業的嵌入式工控機，搭載了Intel?酷睿6/7/8/9/12/13代CPU，能夠輕松應對各種數據處理挑戰；提供2個SO-DIMM筆記本內存插槽，DDR4雙通道支持，高達3200Mhz的內存頻率，單條容量最大支持32GB,?容量最大支持64GB。采用創新的抽拉式硬盤設計，不僅插拔更加順暢，而且有效提高了數據傳輸?shù)姆€(wěn)定性和可靠性。支持軟RAID?0/1/5數據保護功能，保護您的核心數據。配備多元化擴展卡槽配置，包括2PCIe?8X+2PCI、1PCIe?16X+1PCIe?4X以及1PCIe?16X+3PCI等。完美支持TDP≤450W、長度≤320mm、4槽位以內的顯卡，輕松應對高功耗顯卡帶來的挑戰。配備全新的無風扇散熱器，支持最大TDP?65W?CPU。全新的PCIE顯卡固定支架，大大提升了顯卡的穩定性和兼容性。結構整體優化后，成本更低、組裝更簡單，機箱風扇快拆設計，使得維護和清潔變得輕而易舉。
總的來說，阿普奇嵌入式工控機新品E7Pro在各個細節上都展現出了卓越的性能和穩定性，在設計上充分考慮到了用戶的需求和體驗，是我們傾力打造的一款真正適用于復雜和高負荷工業場景的嵌入式工控機。
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel??12th /13th Gen Core/Pentium/Celeron desktop processor |
| TDP | 65W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Max Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel??UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
|
Storage |
SATA | 3 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm),?Support?RAID?0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | ①: 2 * PCIe x16 (x8/x8) + 2 * PCI
②: 2 * PCIe x16 (x8/x8) + 1 * PCIe x4 (x4) PS: ①、②?One out of two, Expansion card length ≤?320mm, TDP ≤?450W |
| aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230) | |
|

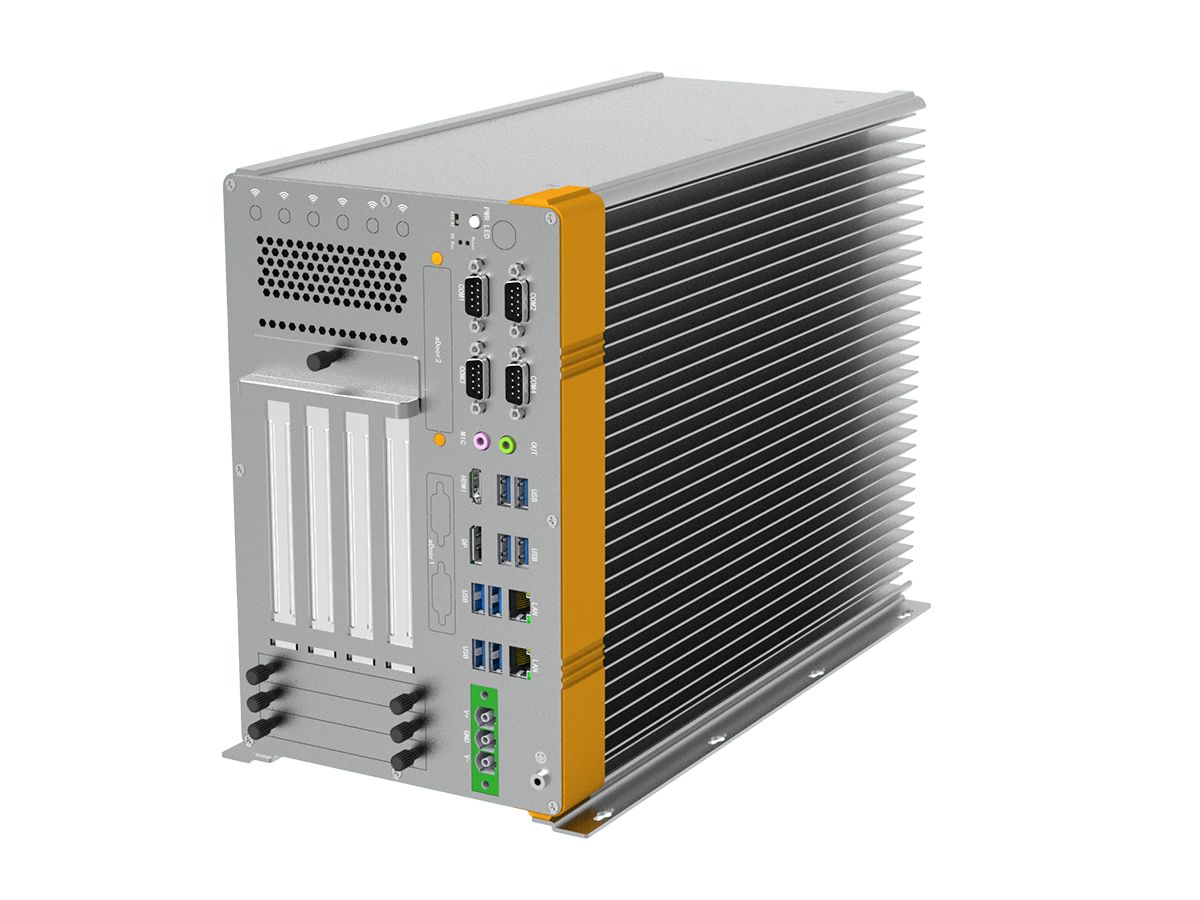

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) |
|
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz 1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
|
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
|
| Button | 1 * Power Button/LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
|
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 6 * USB2.0 (wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz | |
| Front Panel | 1 * FPanel (PWR + RST + LED, wafer) | |
| Audio | 1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
|
| Serial | 2 * RS232 (COM5/6, wafer) | |
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |
| LPC | 1 * LPC (wafer) | |
| SATA | 3 * SATA 7P Connector, up to 600MB/s | |
| SATA Power | 3 * SATA Power (wafer) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (4x1Pin, KF2510-4A) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~60VDC,?P=600/800/1000W (Default 800W) | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net: 10.48 kg
Total: 11.38 kg (Include packaging) |
|
| Mounting | Wall mounted, Desktop | |
|
Environment |

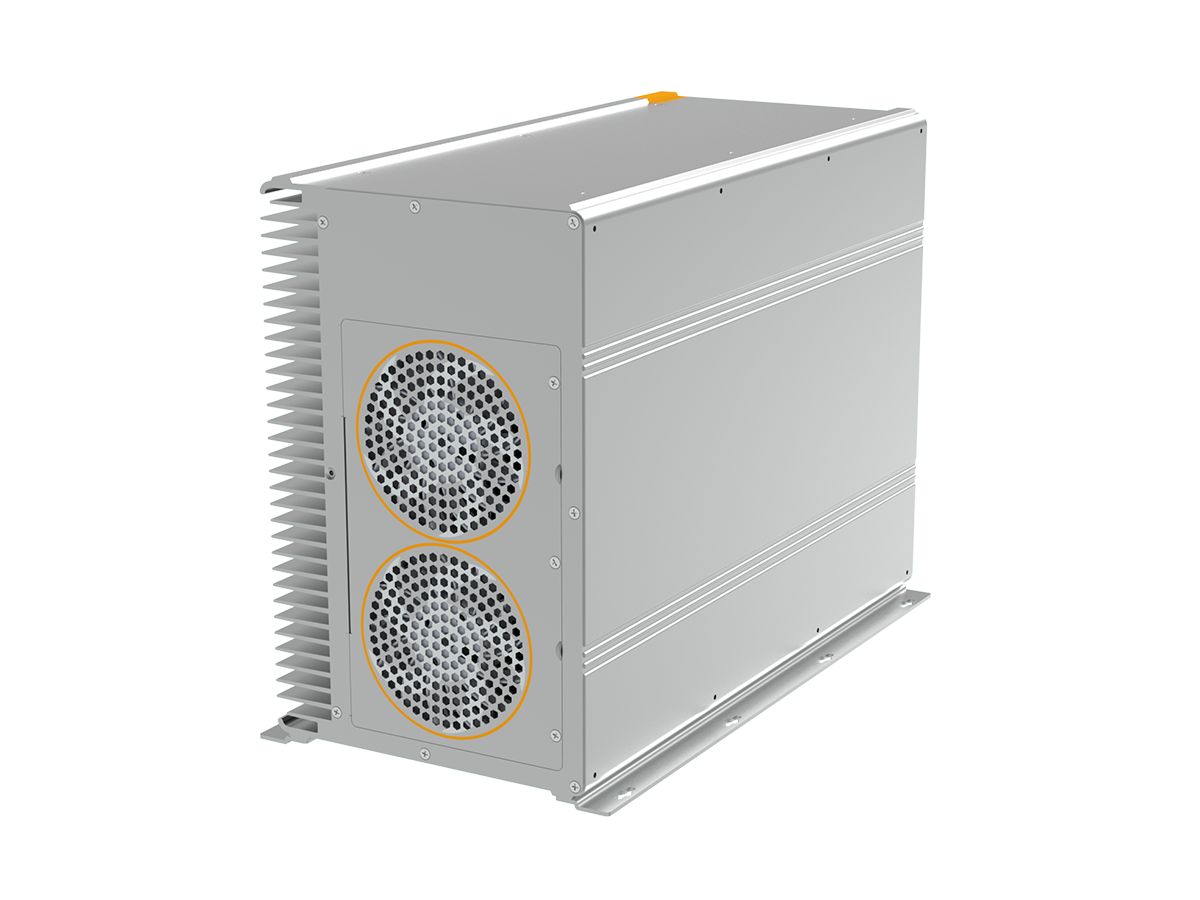

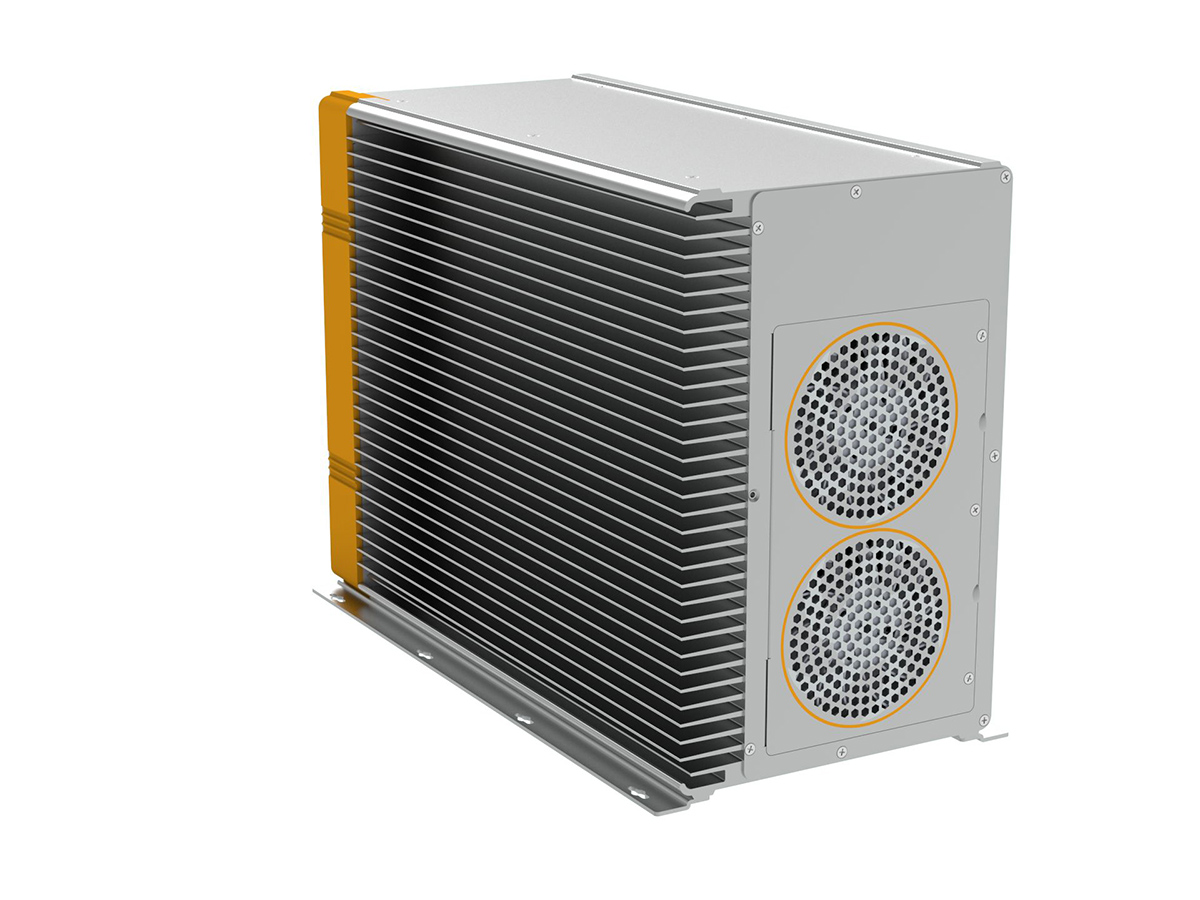

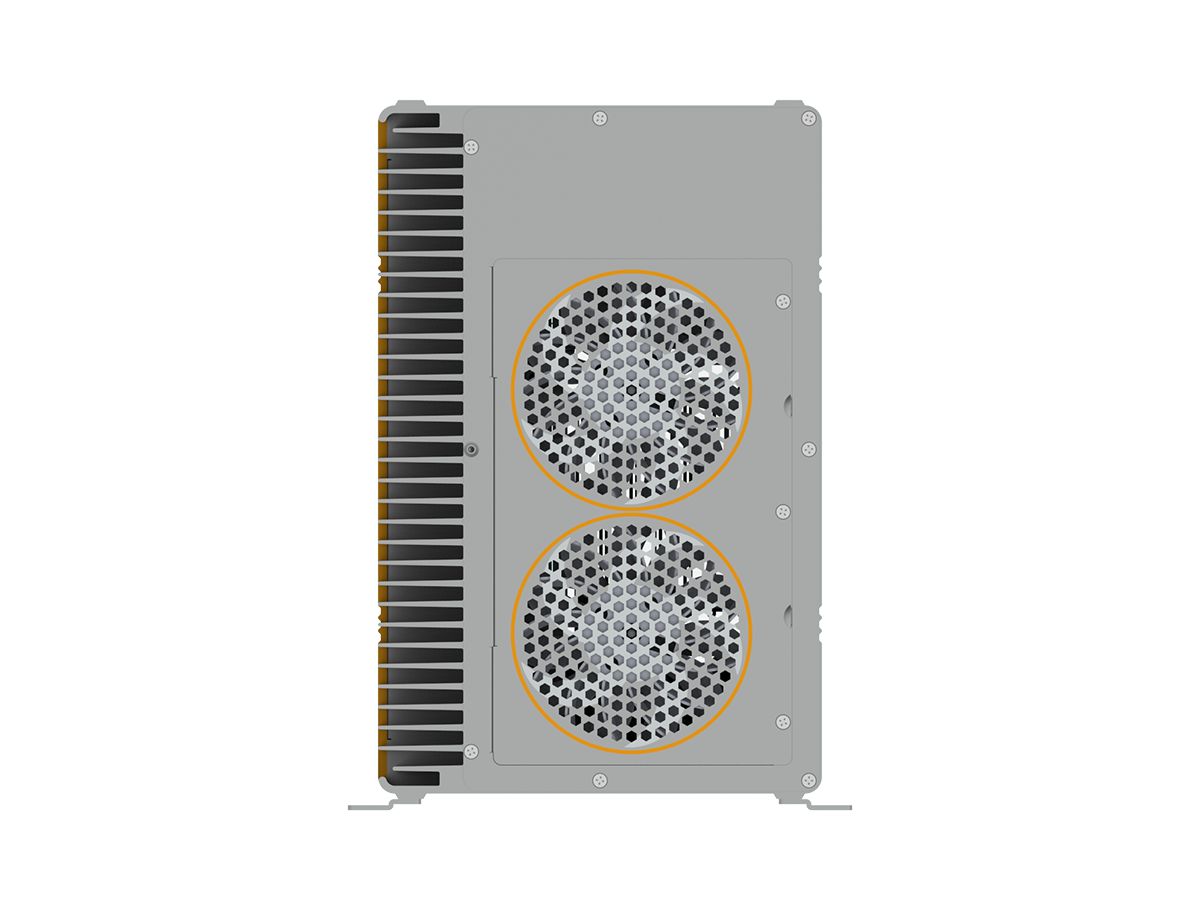

Heat Dissipation System | Fanless Passive Cooling (CPU)
2 * 9cm PWM FAN (Internal) |
| Operating Temperature | -20~60℃?(Industrial SSD) | |
| Storage Temperature | -40~80℃?(Industrial SSD) | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
