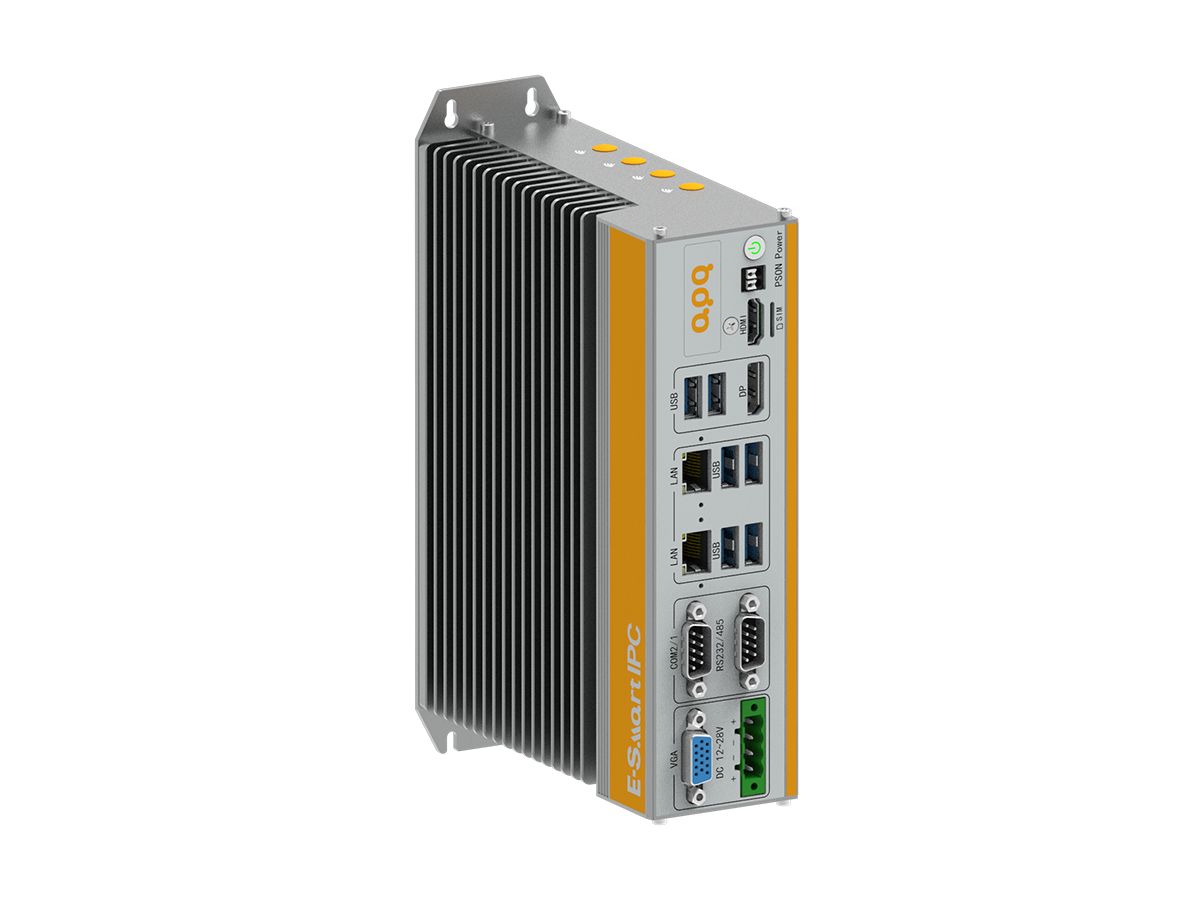

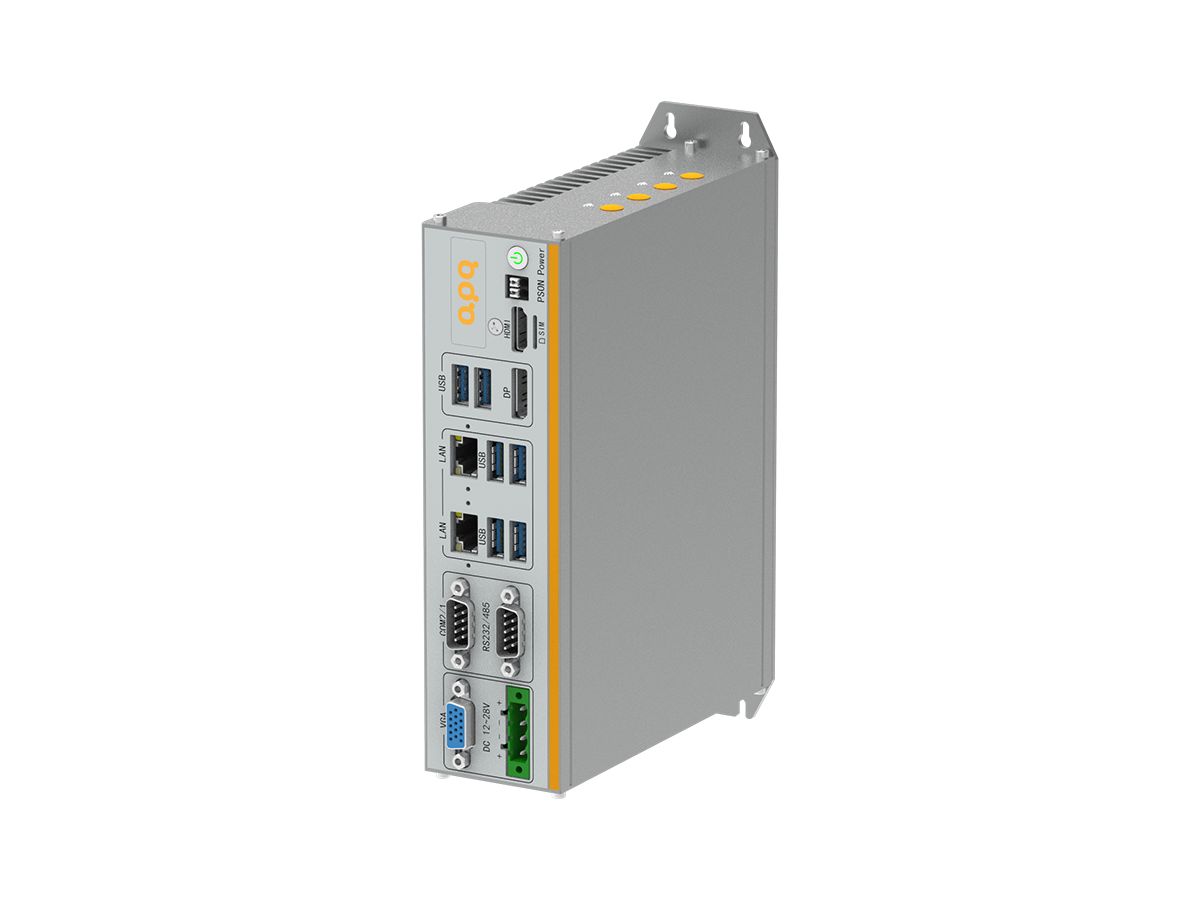

AK5系列Alder Lake-N平臺 具身機器人控制器/嵌入式工控機/行業控制器/邊緣計算控制器

AK5系列Alder Lake-N平臺 具身機器人控制器/嵌入式工控機/行業控制器/邊緣計算控制器

特點:

  • 支持Intel? Alder Lake-N系列移動CPU
  • 1個DDR4 SO-DIMM插槽，最大支持 16GB
  • HDMI、DP、VGA三路顯示輸出
  • 可選2/4個帶POE功能的Intel? i350千兆網絡接口擴展
  • 可選4路光源擴展
  • 可選8路光電隔離數字輸入, 8路光電隔離數字輸出擴展
  • 可選PCIe x4/ PCI擴展
  • 支持WiFi/4G無線擴展
  • 內置USB 2.0 Type-A便于安裝加密狗
  • 支持桌面式、壁掛式、DIN導軌
  • 無風扇被動式散熱
  • 12~28V直流供電

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model

AK5xxx

AK5xxx-1A/1B

AK5xxx-2A

AK5xxx-3A

CPU

 CPU Intel??Alder Lake-N Series Processor
TDP 12/15W
Chipset SOC

BIOS

 BIOS AMI UEFI BIOS

Memory

 Socket 1 * DDR4 SO-DIMM Slot, up to 3200MHz
Max Capacity 16GB

Graphics

 Controller Intel??UHD Graphics

Ethernet

 Controller 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i350 GbE LAN Chip (10/100/1000 Mbps)		 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)

Storage

 M.2 1 * M.2 Key-M (SATA3.0, 2280)

Expansion Slots

 Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
PCIe/PCI N/A N/A 1 * PCIe x4 1?* PCI

Front I/O

 USB 4 * USB3.0 (Type-A)

2?* USB2.0 (Type-A)
Serial 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
Display 1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz
LAN/POE 2 * RJ45 2 * RJ45
AK5xxx-1A: 2 * RJ45, Intel??i350-AM2, optional POE module, 802.3at/af, total 60W
AK5xxx-1B: 4 * RJ45, Intel??i350-AM4, optional POE module, 802.3at/af, total 60W		 2 * RJ45 2 * RJ45
Light Source N/A 4 * Light Source Output (24V, Max. 1A per channel, PWM control) N/A N/A
GPIO N/A 1 * 16bits DIO (8xDI,?optical isolation; 8xDO, optical isolation) N/A N/A
Power 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input
SIM 1 * Nano SIM Card slot (Mini PCIe module provide functional support)
Button 1 * Power Button + Power LED
1 * PS_ON Connector

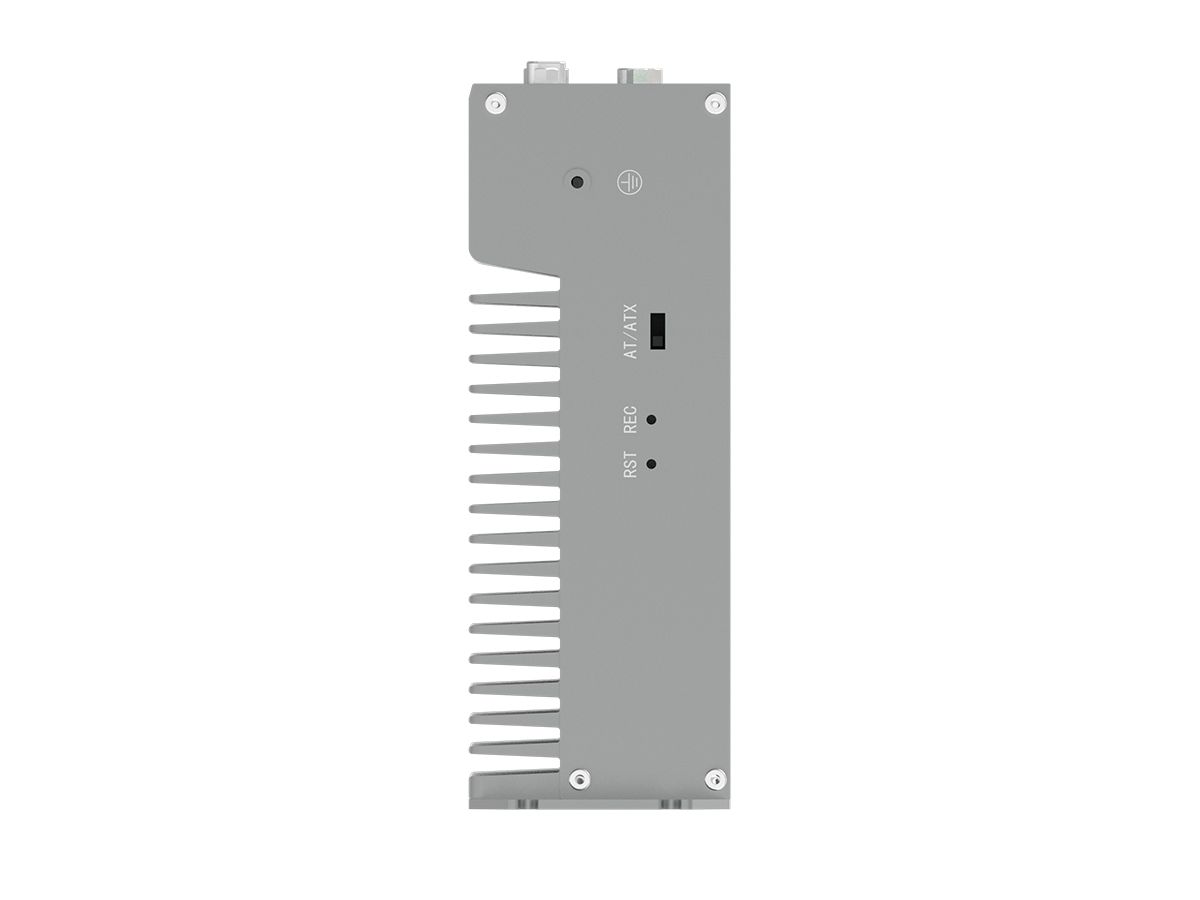

Bottom I/O

 Switch 1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
Button 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)
PCIe/PCI N/A N/A 1 * PCIe x4 1?* PCI

Power Supply

 Type DC
Power Input Voltage 12 ~ 28VDC
Note：When using the light source, 24V input must be used.
Connector 1 * 4Pin Power Input Connector (P= 5.08mm)
RTC Battery CR2032 Coin Cell

OS Support

 Windows Windows 10/11
Linux Linux

Watchdog

 Output System Reset
Interval Programmable via Software from 1 to 255 sec

Mechanical

 Enclosure Material Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
Dimensions 53mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H)

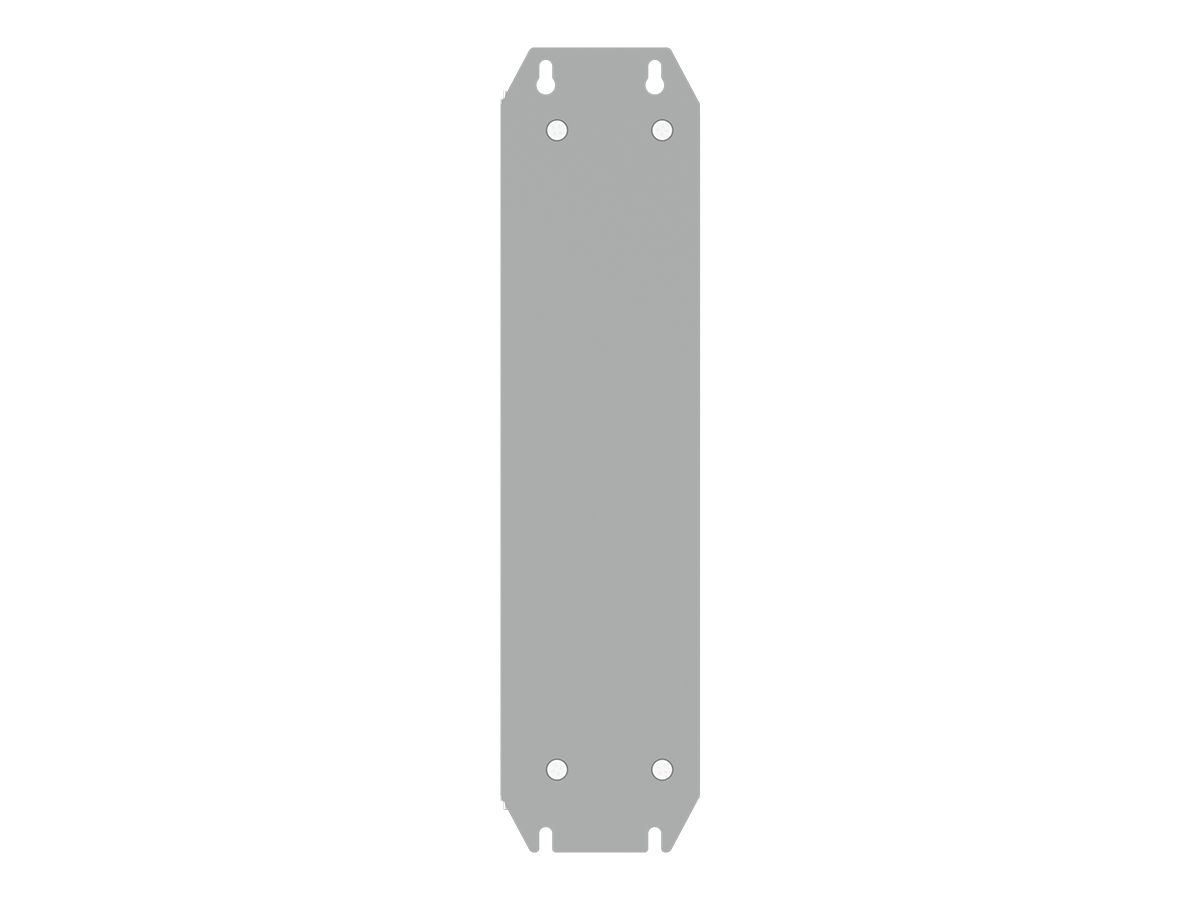

Mounting Wall mounted, DIN, Desktop

Environment

 Heat Dissipation System Passive Heat Dissipation
Operating Temperature -20~60℃?(Industrial SSD)
Storage Temperature -40~80℃?(Industrial SSD)
Relative Humidity 5 to 90% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK5xxx_SpecSheet(APQ)_CN_20240111
