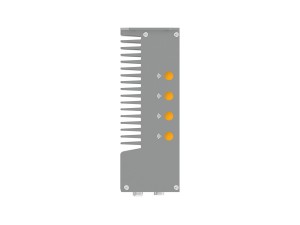

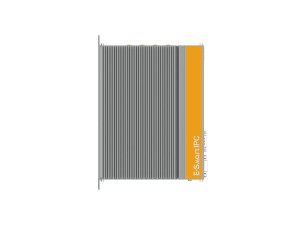

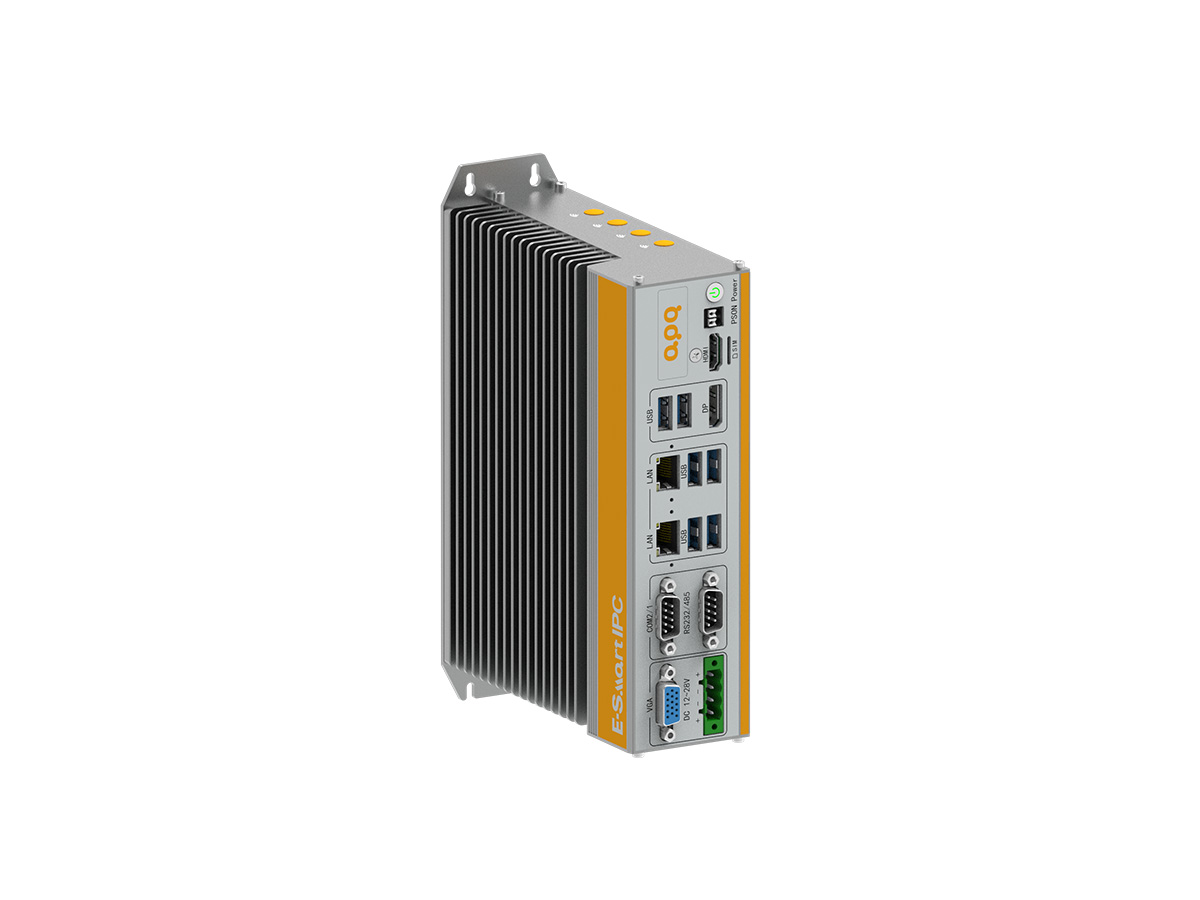

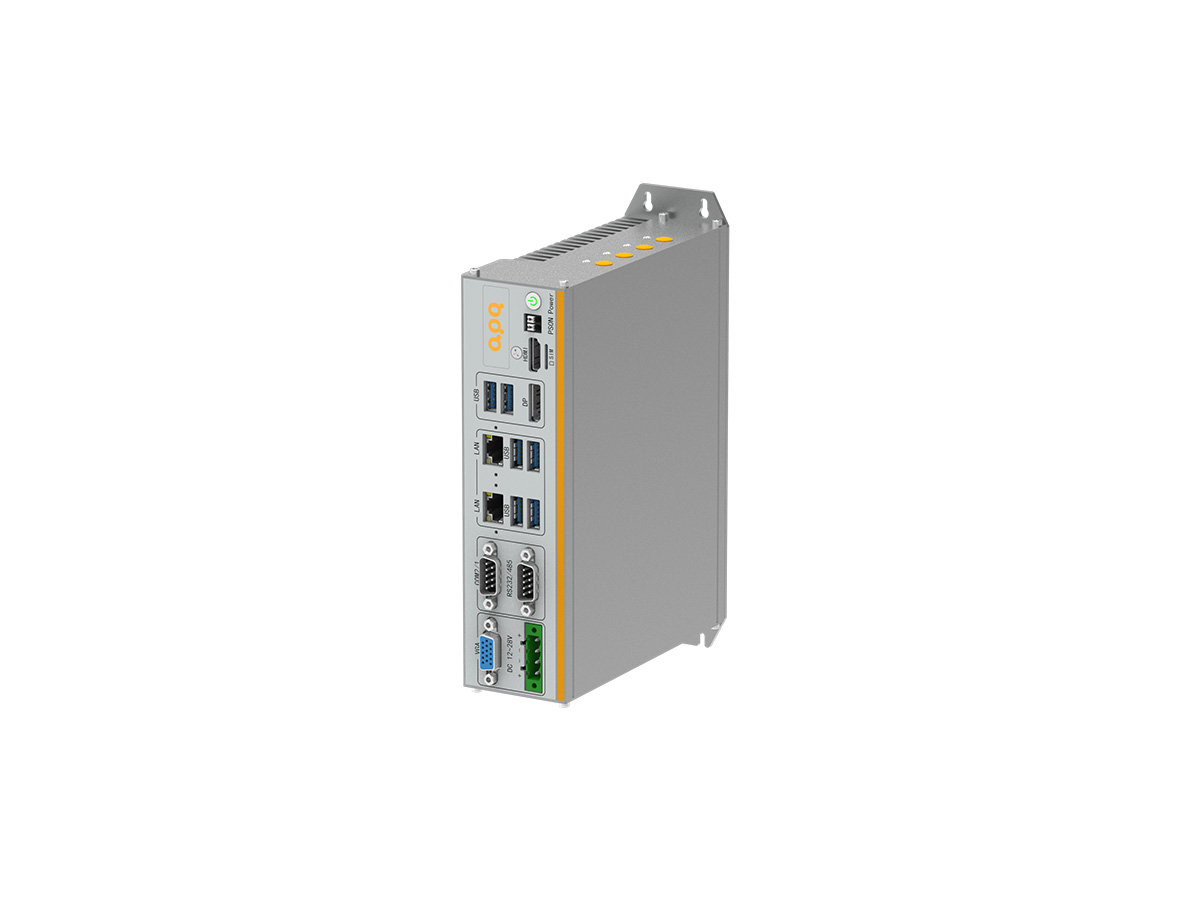

AK6系列12th-P平臺 嵌入式工控機/機器人控制器/邊緣計算控制器

AK6系列12th-P平臺 嵌入式工控機/機器人控制器/邊緣計算控制器

特點:

  • 支持Intel? 12th Gen CoreTM i3/i5/i7 -P系列移動CPU
  • 2個DDR5 SO-DIMM插槽，最大支持 64GB
  • HDMI、DP、VGA三路顯示輸出
  • 可選2/4個帶POE功能的Intel? i350千兆網絡接口擴展
  • 可選4路光源擴展
  • 可選8路光電隔離數字輸入, 8路光電隔離數字輸出擴展
  • 可選PCIe x4/ PCI擴展
  • 支持WiFi/4G無線擴展
  • 內置USB 2.0 Type-A便于安裝加密狗
  • 支持桌面式、壁掛式、DIN導軌
  • 無風扇被動散熱
  • 12~28V直流供電

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

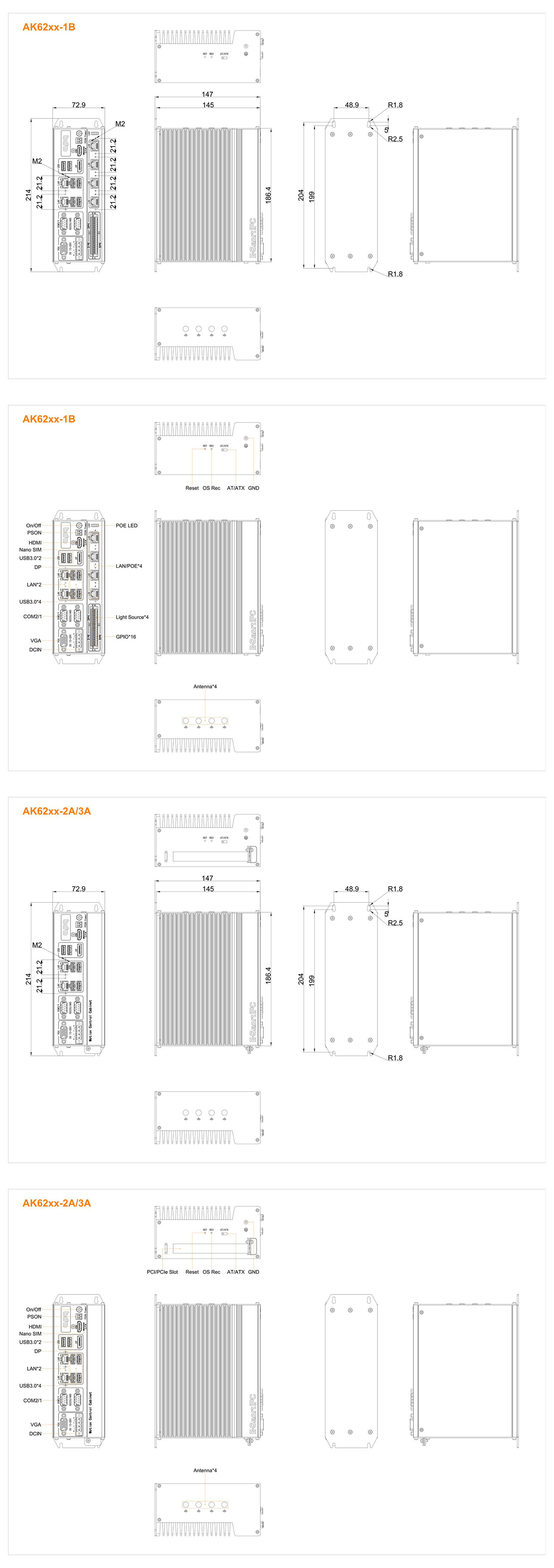

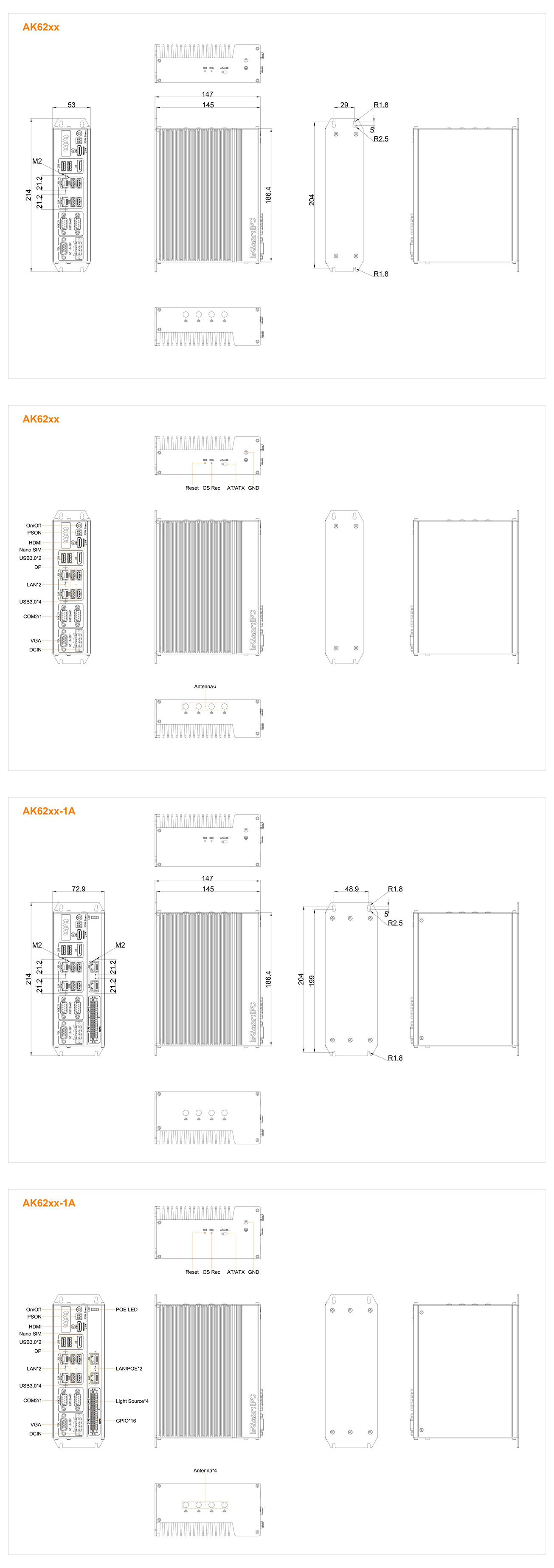

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model AK62xx AK62xx-1A/1B AK62xx-2A AK62xx-3A
CPU CPU Intel??12th?Generation CoreTM?i3/i5/i7 Mobile -P CPU
TDP 28W
Chipset SOC
BIOS BIOS AMI UEFI BIOS
Memory Socket 2 * DDR5 SO-DIMM Slot, Dual Channel up to 5200MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel? Iris??Xe Graphics
Ethernet Controller 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM/V GbE LAN Chip (10/100/1000 Mbps)		 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i350 GbE LAN Chip (10/100/1000 Mbps)		 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM/V GbE LAN Chip (10/100/1000 Mbps)		 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage M.2 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
1 * M.2 Key-M (SATA3.0, 2280)		 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
Expansion Slots Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0)
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
PCIe/PCI N/A N/A 1 * PCIe x4 1?* PCI

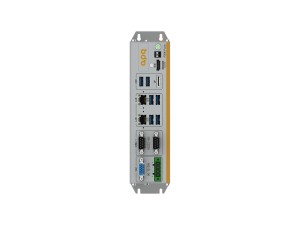

Front I/O USB 6 * USB3.0 (Type-A)
Serial 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
Display 1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz
LAN/POE 2 * RJ45 2 * RJ45
AK62xx-1A: 2 * RJ45, Intel??i350-AM2, optional POE module, 802.3at/af, total 60W
AK62xx-1B: 4 * RJ45, Intel??i350-AM4, optional POE module, 802.3at/af, total 60W		 2 * RJ45 2 * RJ45
Light Source N/A 4 * Light Source Output (24V, Max. 1A per channel, PWM control) N/A N/A
GPIO N/A 1 * 16bits DIO (8xDI,?optical isolation; 8xDO, optical isolation) N/A N/A
Power 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input
SIM 1 * Nano SIM Card slot (Mini PCIe module provide functional support)
Button 1 * Power Button + Power LED
1 * PS_ON Connector

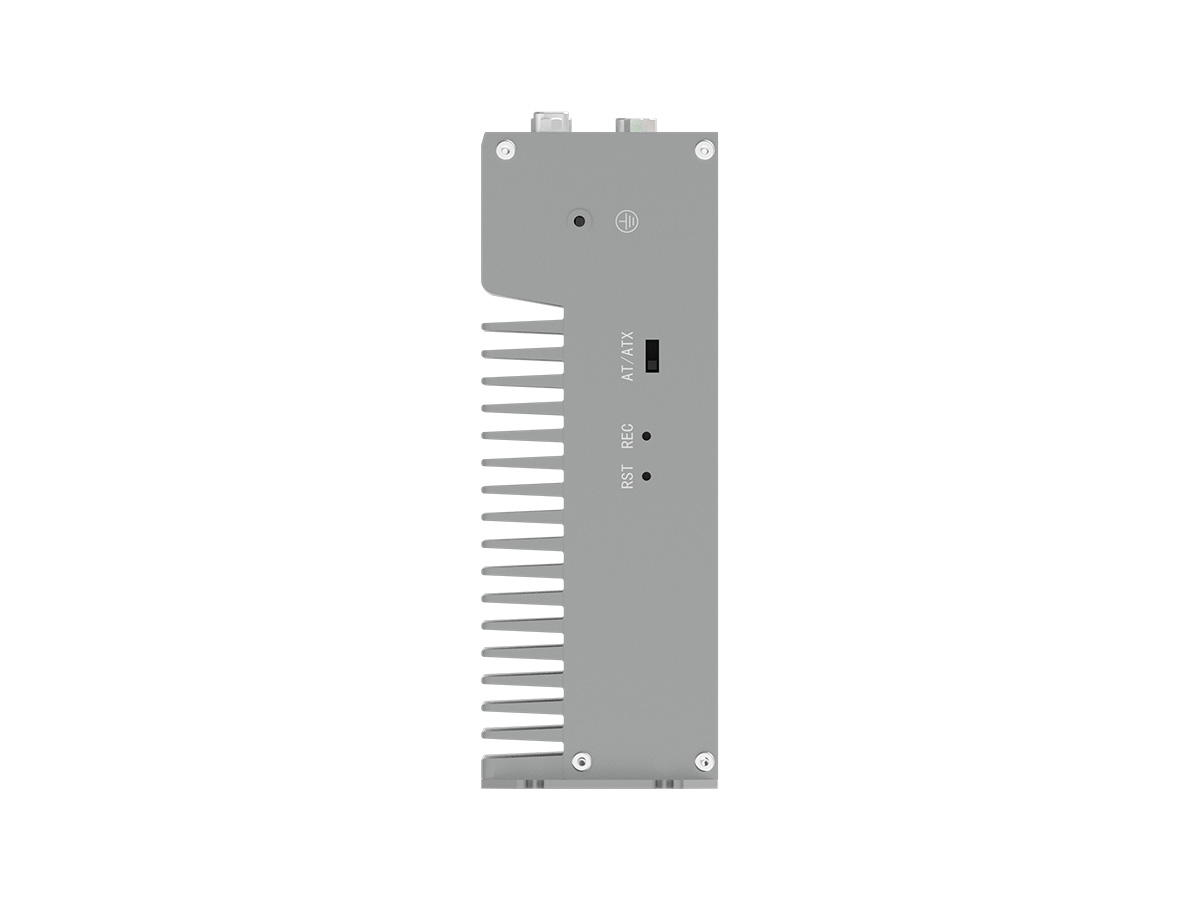

Bottom I/O Switch 1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
Button 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)
PCIe/PCI N/A N/A 1 * PCIe x4 1?* PCI
Power Supply Type DC
Power Input Voltage 12 ~ 28VDC
Note：When using the light source, 24V input must be used.
Connector 1 * 4Pin Power Input Connector (P= 5.08mm)
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
Dimensions 53mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H)

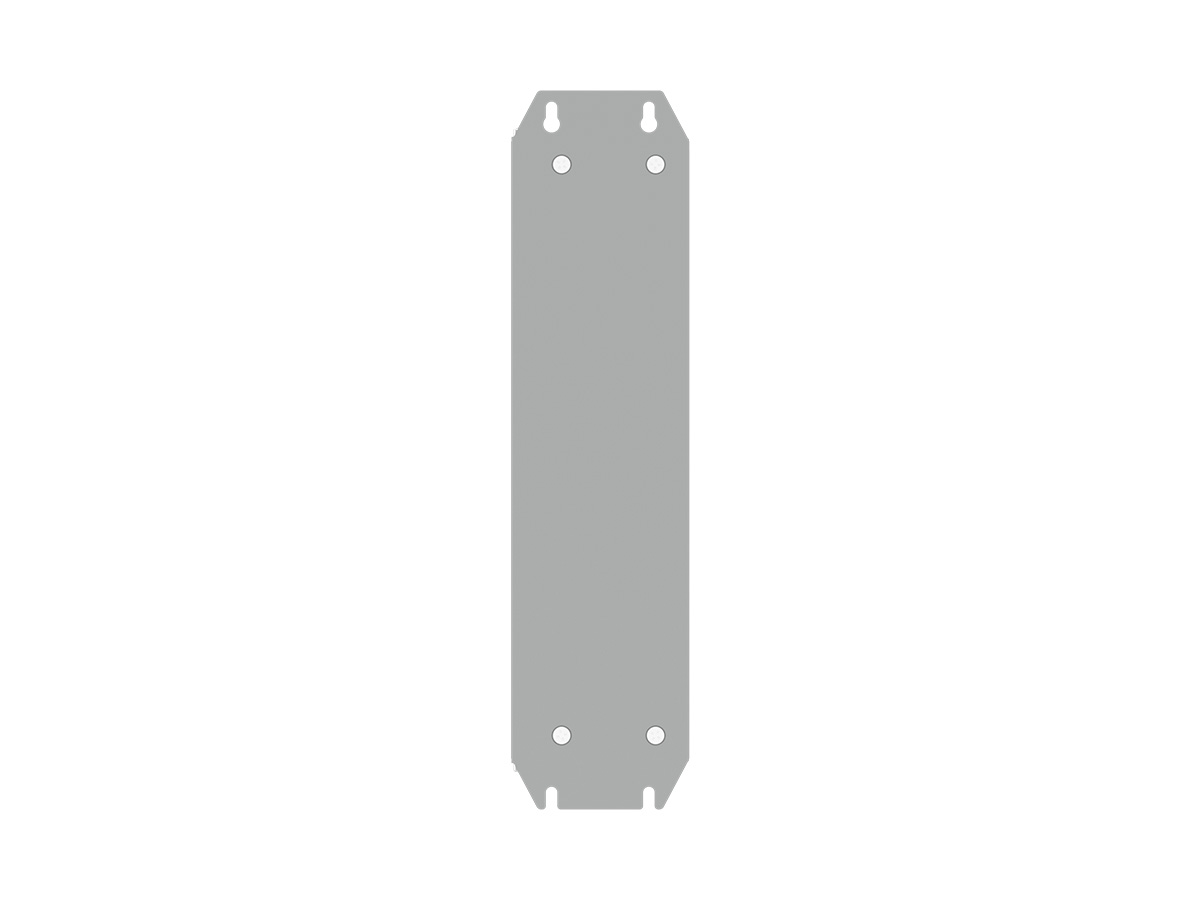

Mounting Wall mounted, DIN, Desktop
Environment Heat Dissipation System Passive Heat Dissipation
Operating Temperature -20~60℃?(Industrial SSD)
Storage Temperature -40~80℃?(Industrial SSD)
Relative Humidity 5 to 90% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK62xx-20240109_00AK62xx-20240109_01
